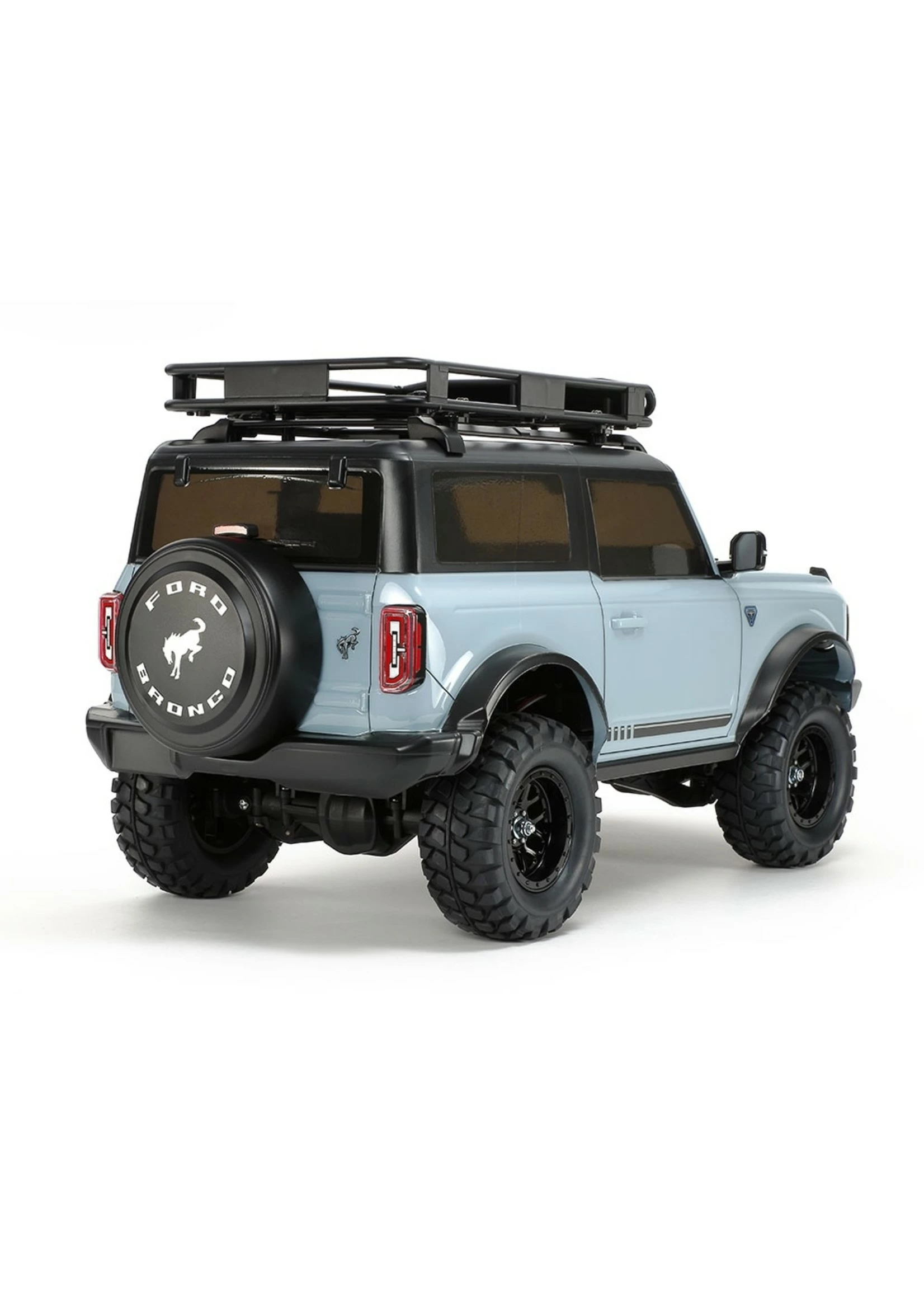

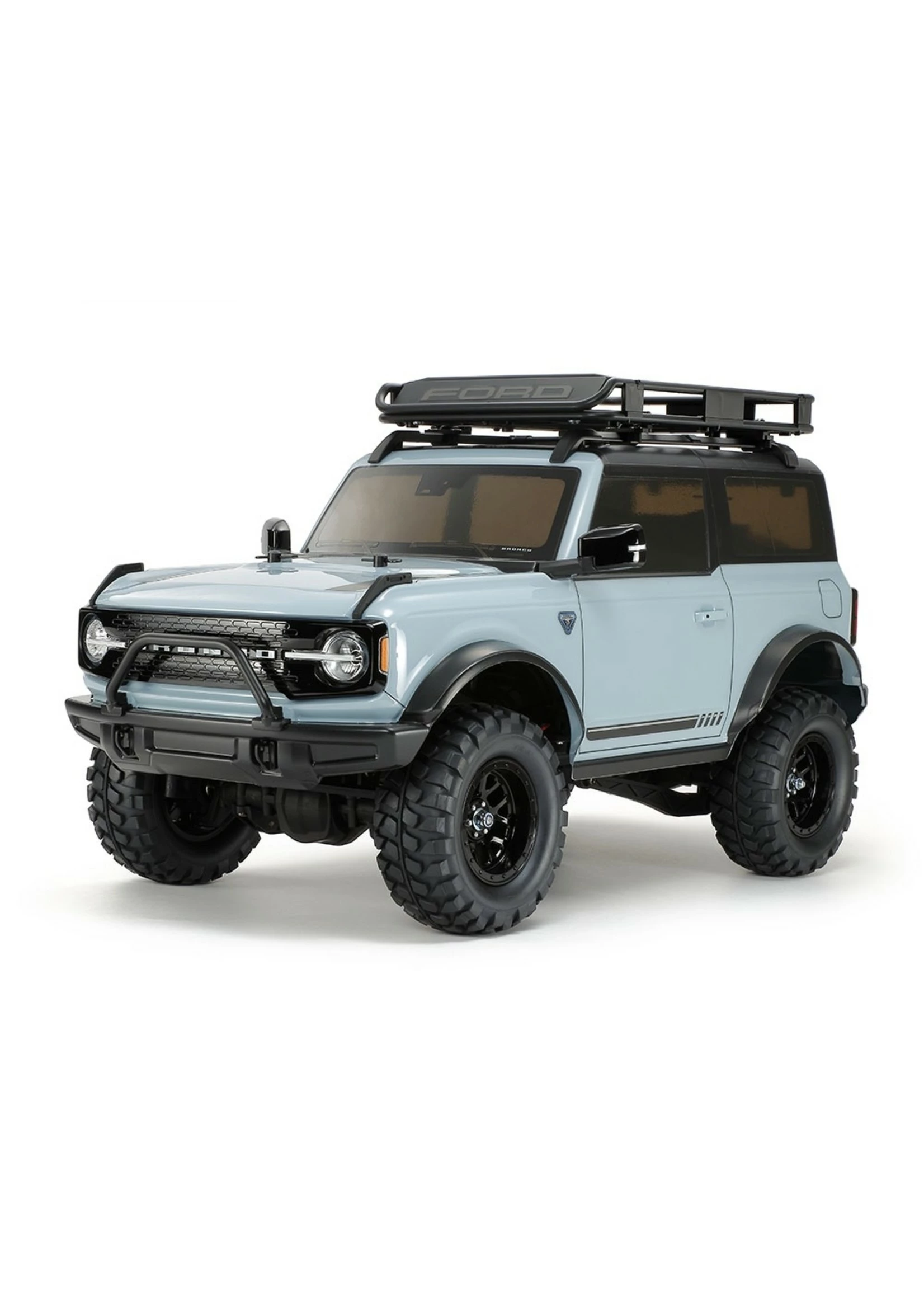

Tamiya Ford Bronco 2021, CC-02 Chassis Kit

Tamiya 58705A – Ford Bronco 2021, CC-02 Chassis Kit

The Ford Bronco has been sold since 1966, and the Ford Bronco 2021 was announced, with great anticipation, as the sixth-generation model in early 2021, 25 years since the last generation’s release.

Tamiya’s design team have chosen to give R/C enthusiasts a replica of the best Bronco variant of this new generation. The R/C model assembly kit depicts the 2-door top grade First Edition model. The First Edition Bronco SUV is built for those who have waited patiently for the legend’s return. The First Edition is a loaded Bronco combining the best parts of all Bronco series. First Edition Broncos use the mechanicals of a Badlands, the interior of an Outer Banks and the exterior of a Wildtrak to create the ultimate Bronco! The Tamiya version sits on top of the CC-02 chassis for capable and fun R/C driving on the trails!

CC-02 Chassis – Off Road, Evolved! Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis’ ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with 12-spoke black wheels and semi-pneumatic rubber tires.

Features:

• 1/10 scale R/C model assembly kit. Length: 447mm, width: 204mm, height: 233mm. Wheelbase: 252mm (Medium).
• 1.2mm thick polycarbonate body.

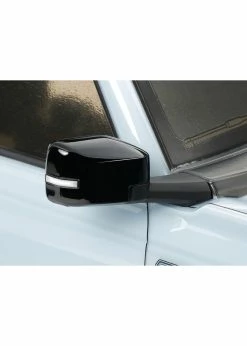

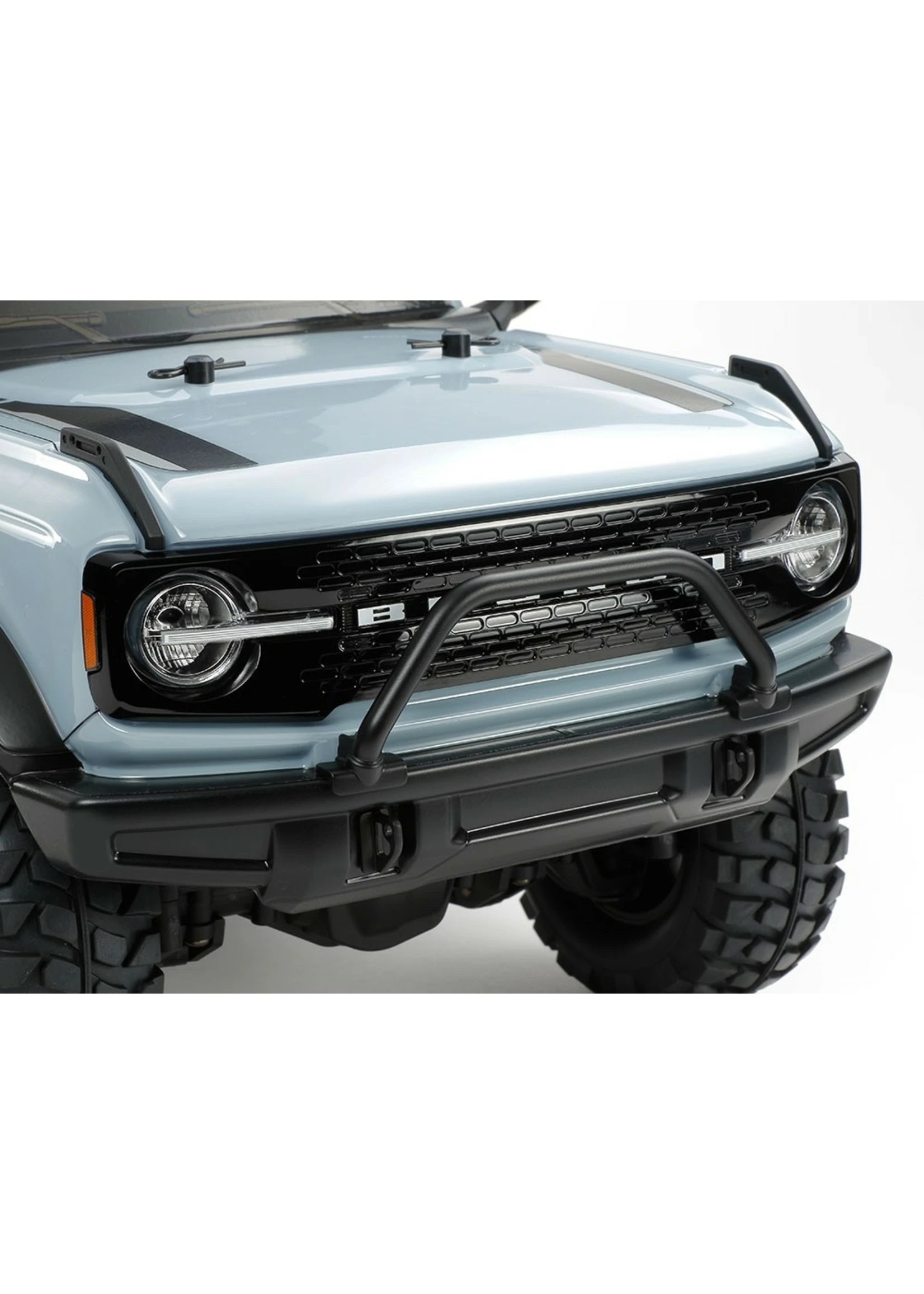

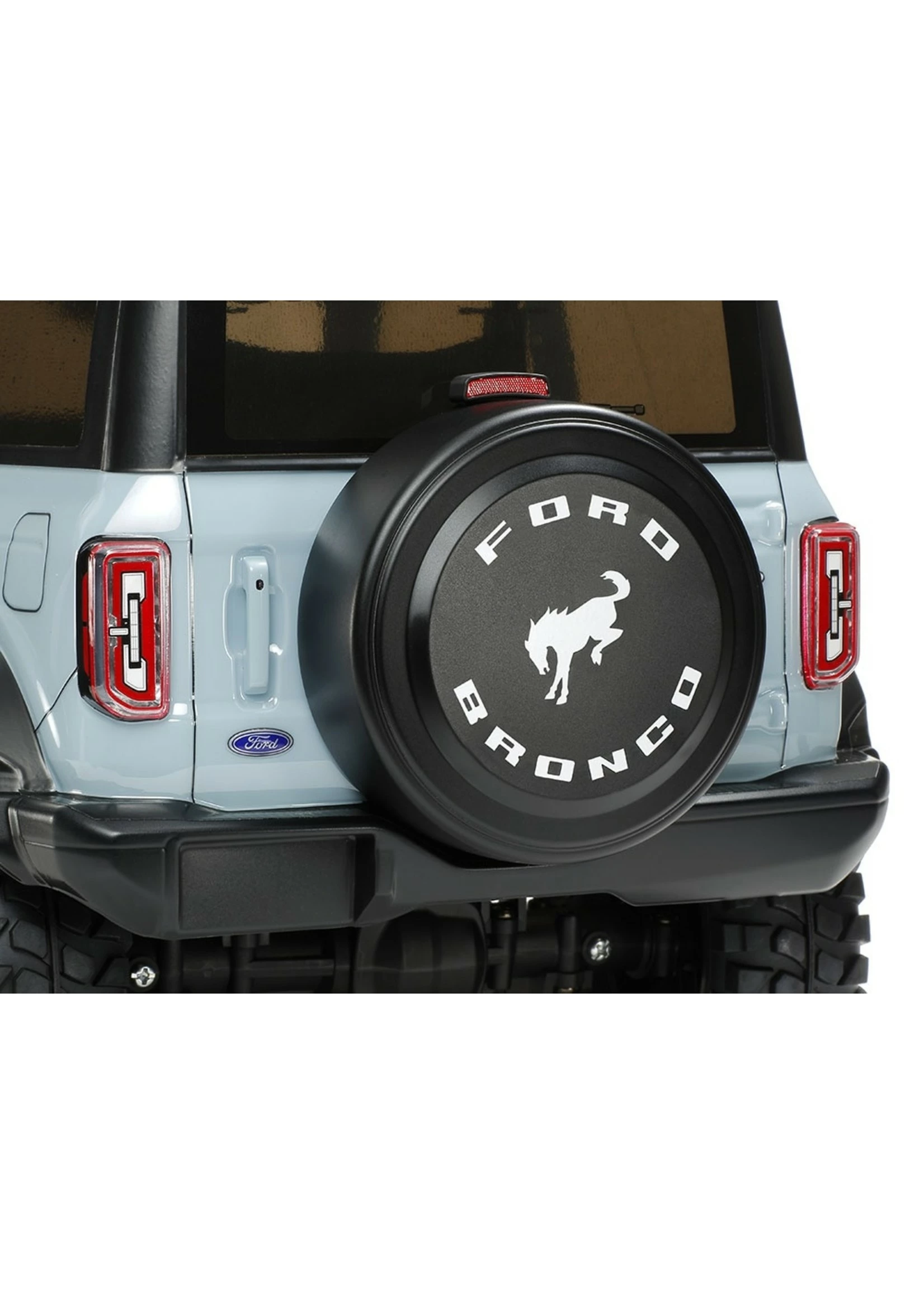

• Features PC-ABS H parts (grilles, mirrors, spare tire cover and door handles) and metal-plated K parts (light cases).

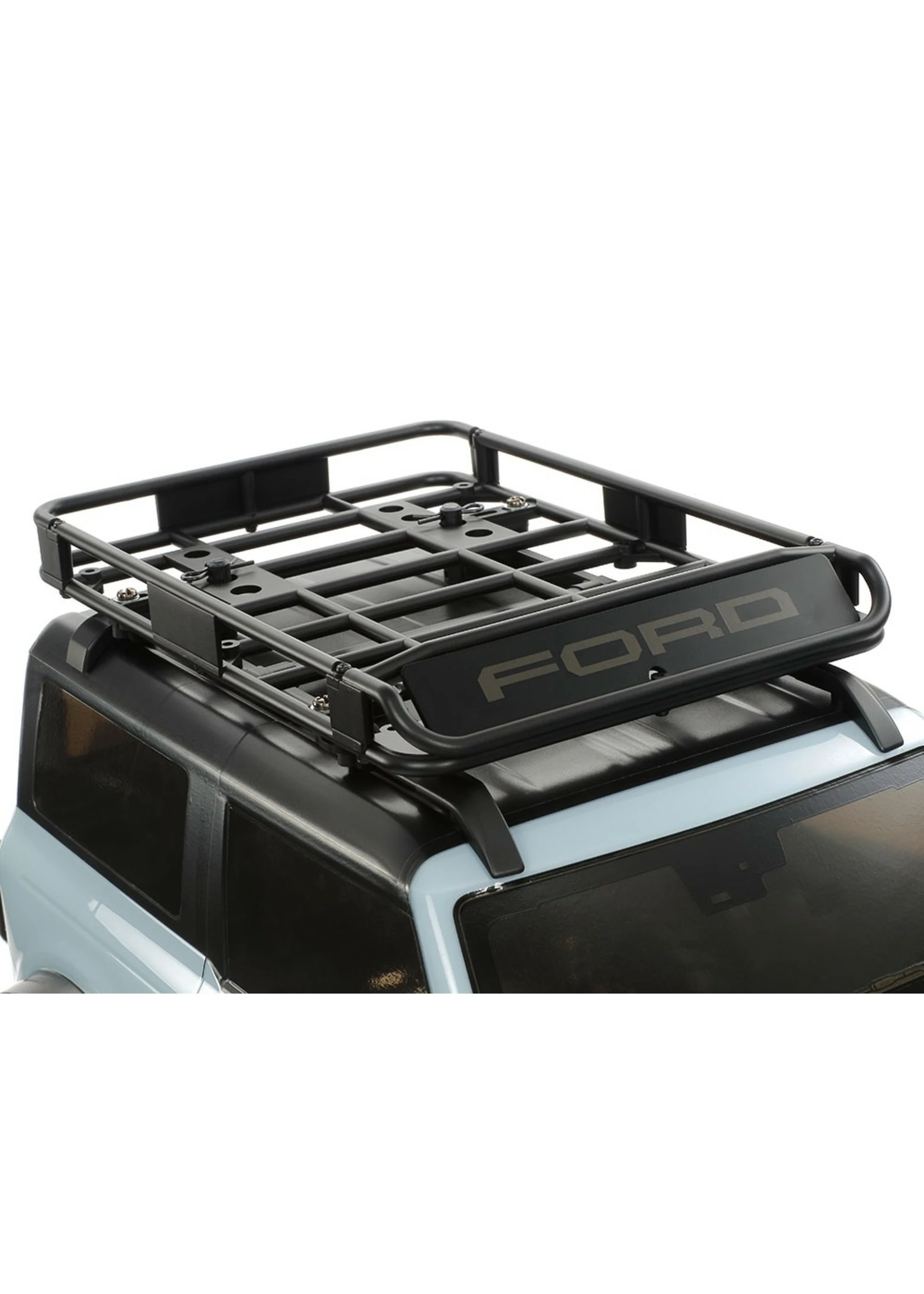

• ABS plastic roof rack included.
• The CC-02 chassis has ladder frame which was inspired by full-size vehicles, provides both rigidity and cool styling, and allows stable performance even on tricky rocky and dirt roads.

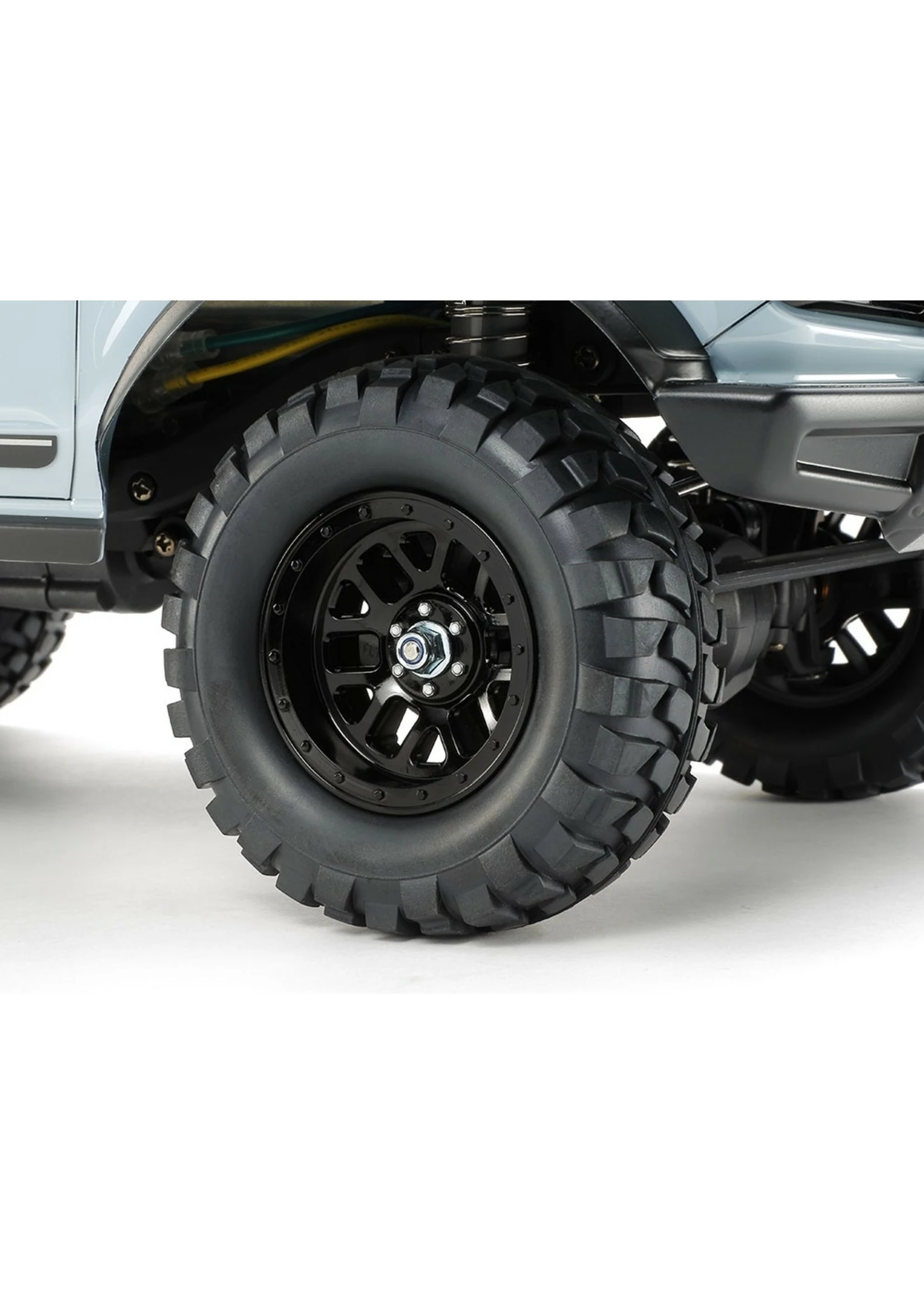

• 12-spoke black wheels (width: 26mm, offset: +6) are paired with semi-pneumatic rubber tires.
• Type 540 motor and ESC included.
• Requires: 2-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint.

Specs:

Adjustable Gear Ratio: Yes
Bearings Plastic: bushing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: FRP Fiberglass Reinforced Plastic
Chassis Type: CC-02
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
Led Lights: Included
Motor: 540-brushed type
Required To Complete: 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS paint.
Scale: 1/10
Shock Damper: CVA Oil Filled
Suspension: 4-link
Terrain Use: Multi-Purpose
