Tamiya 1/12 Toyota Land Cruiser 40 Pickup – GF-01 Chassis Kit

Tamiya 58589 – 1/12 Toyota Land Cruiser 40 Pickup – GF-01 Chassis Kit

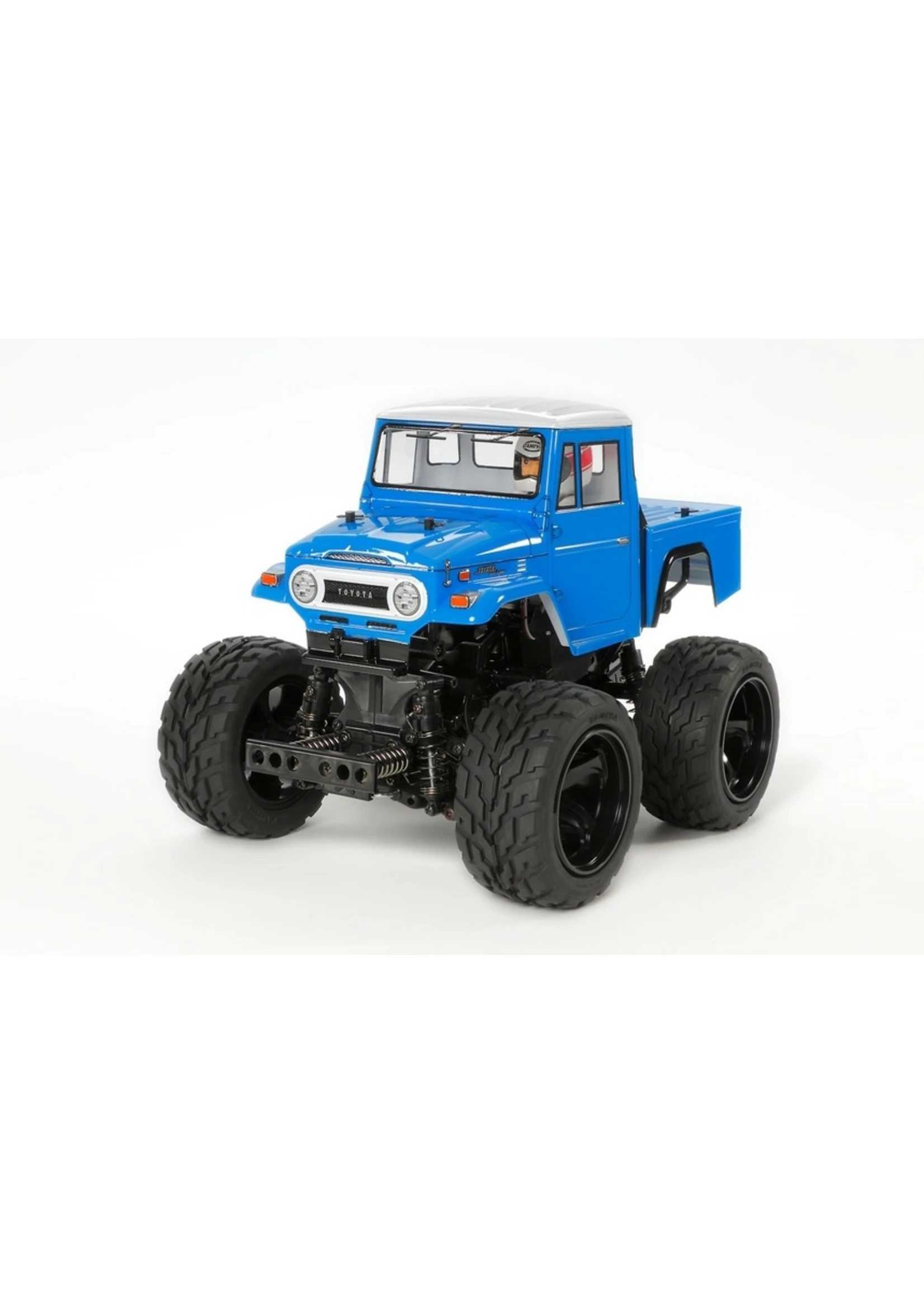

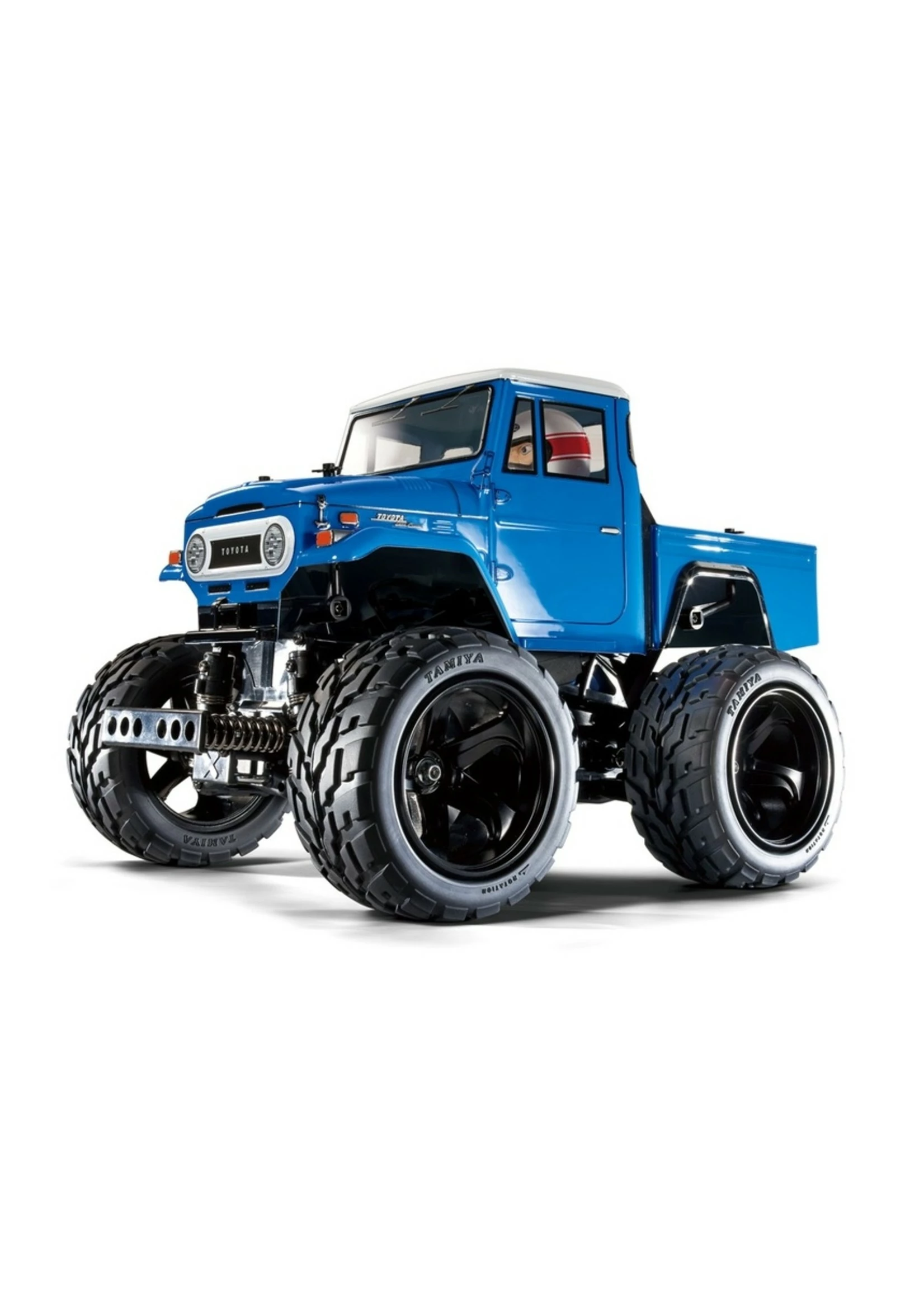

Toyota’s Land Cruiser needs little introduction; it was a pioneering 4WD vehicle in Japan, and would become one of the most recognizable cars of its type in the world. Its history stretches back to the 1950s, and includes the 40 series, which was produced from 1960-1984 and can still be seen in service today. This R/C model recreates the iconic off-roader with a polycarbonate pick-up truck style body and resin driver figure. It is mounted on the new gear-driven 4WD GF-01 chassis unit, using huge tires to hustle across poor terrain.

GF-01: Square Set-up, Excellent Performance

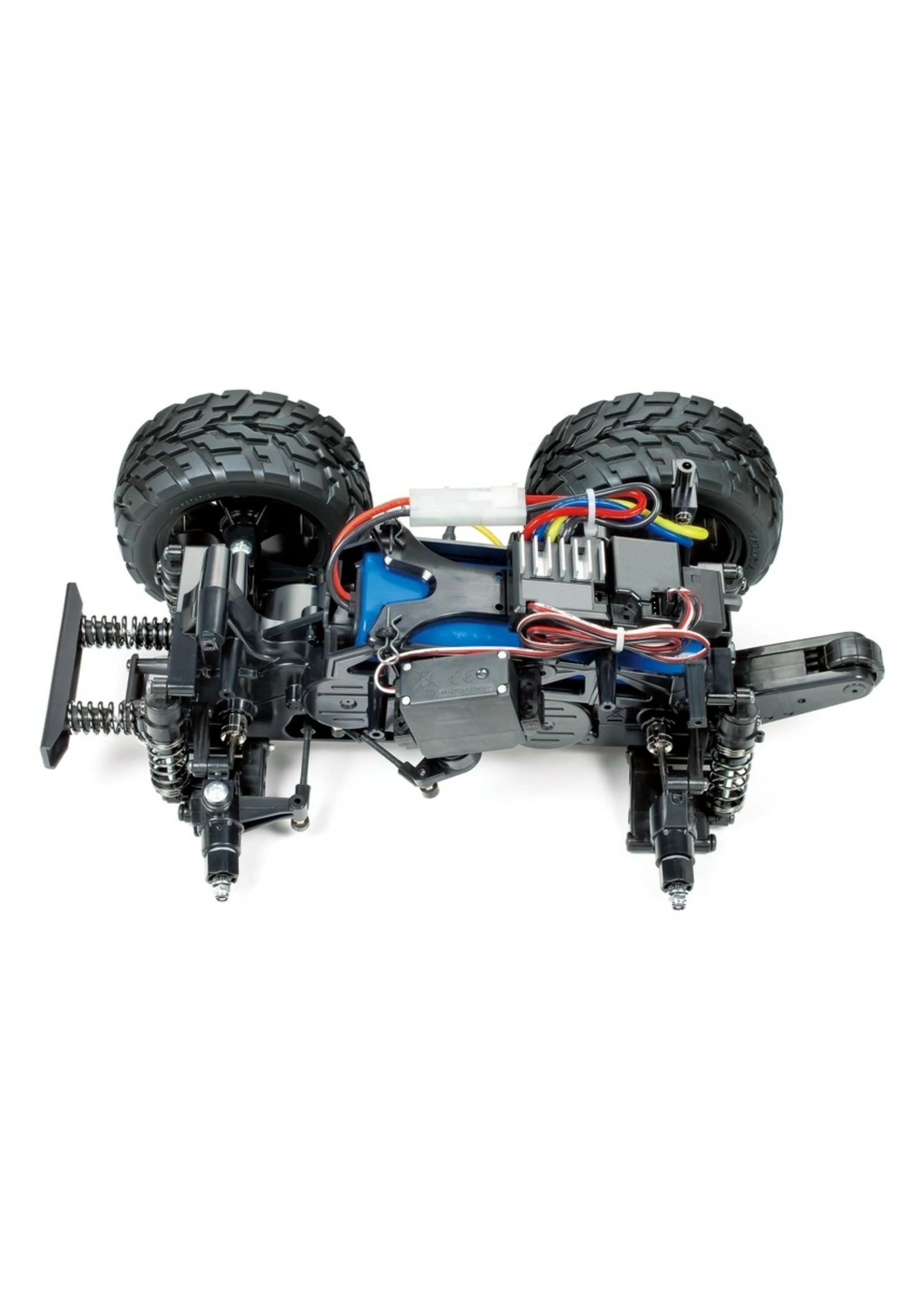

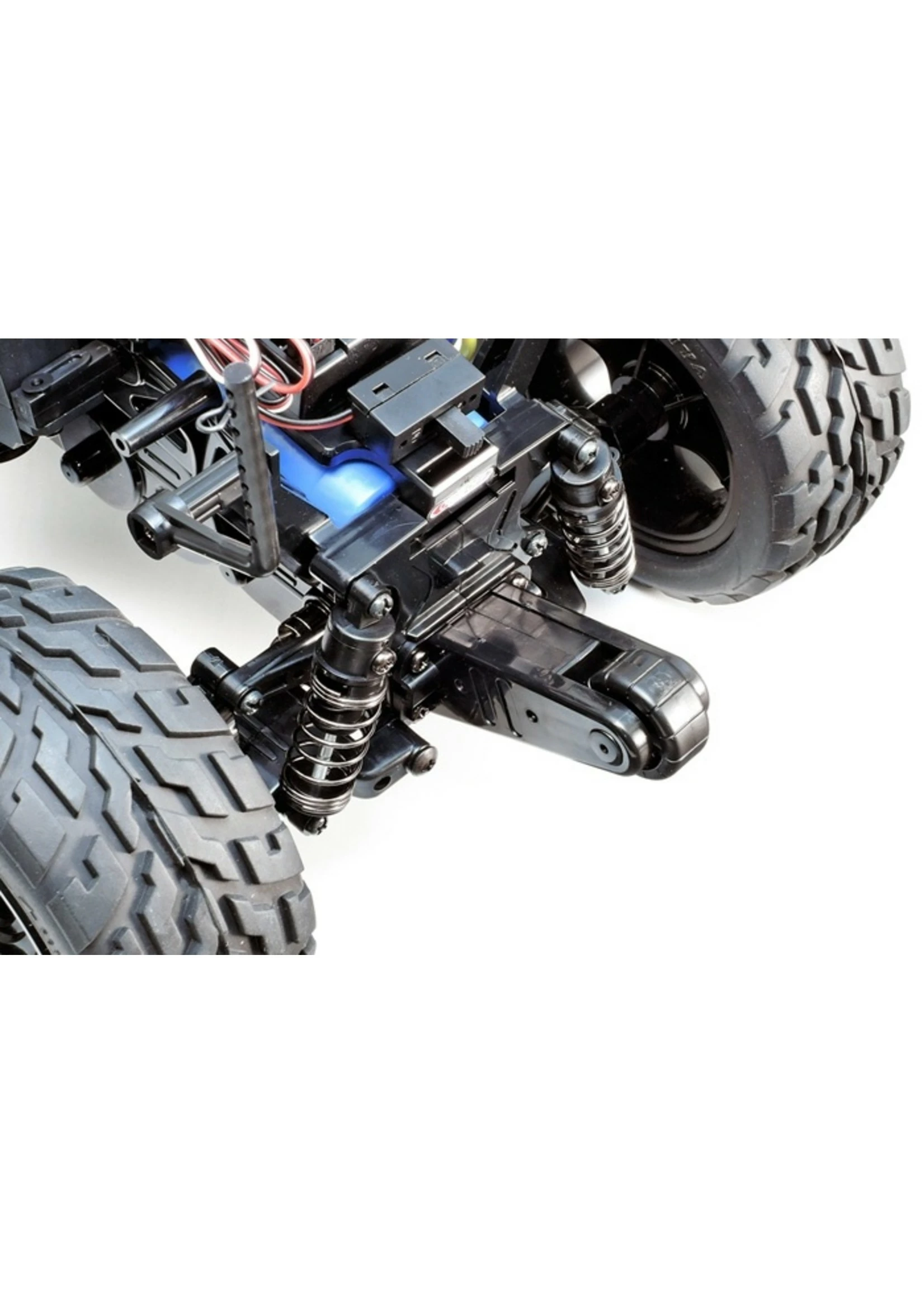

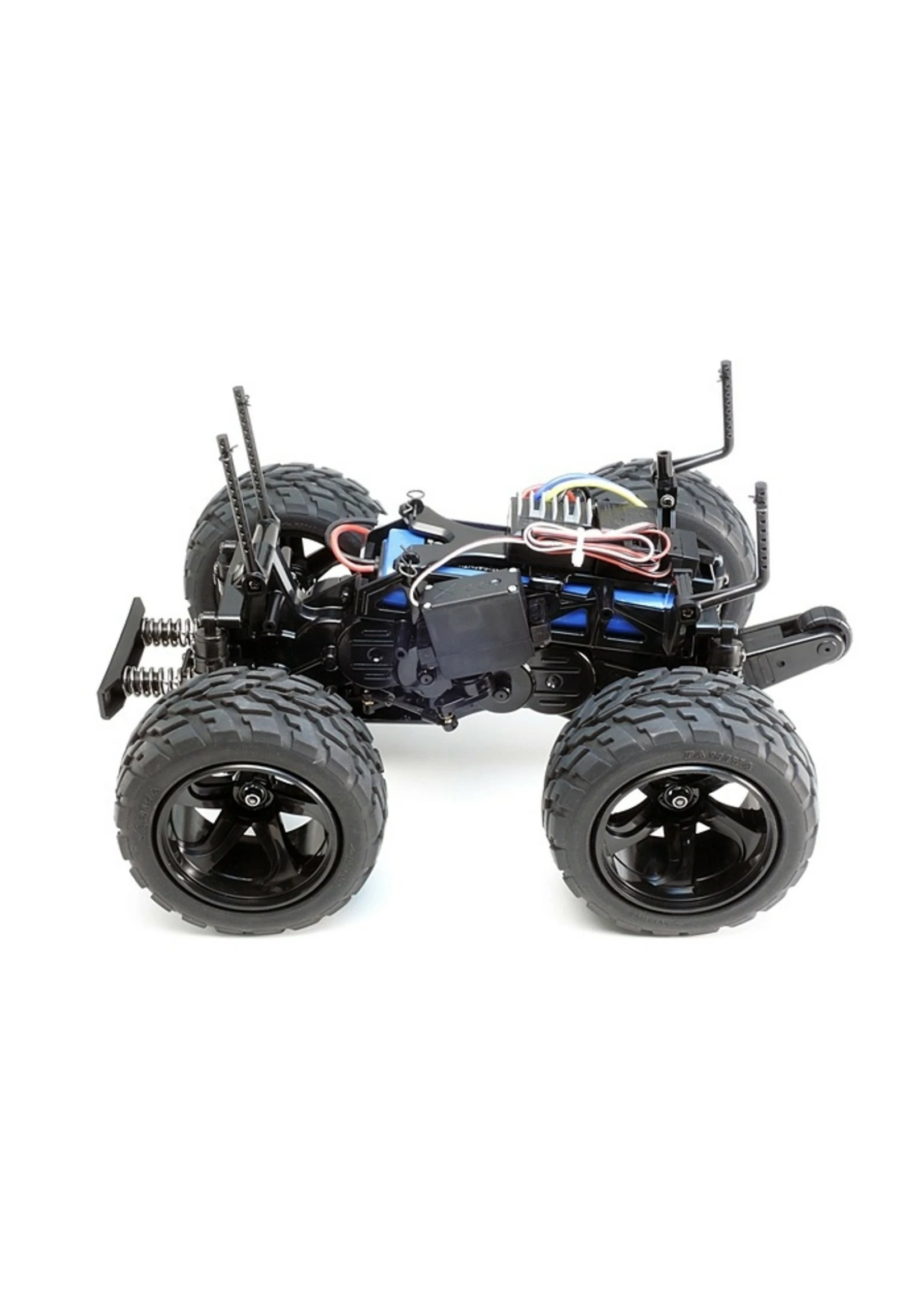

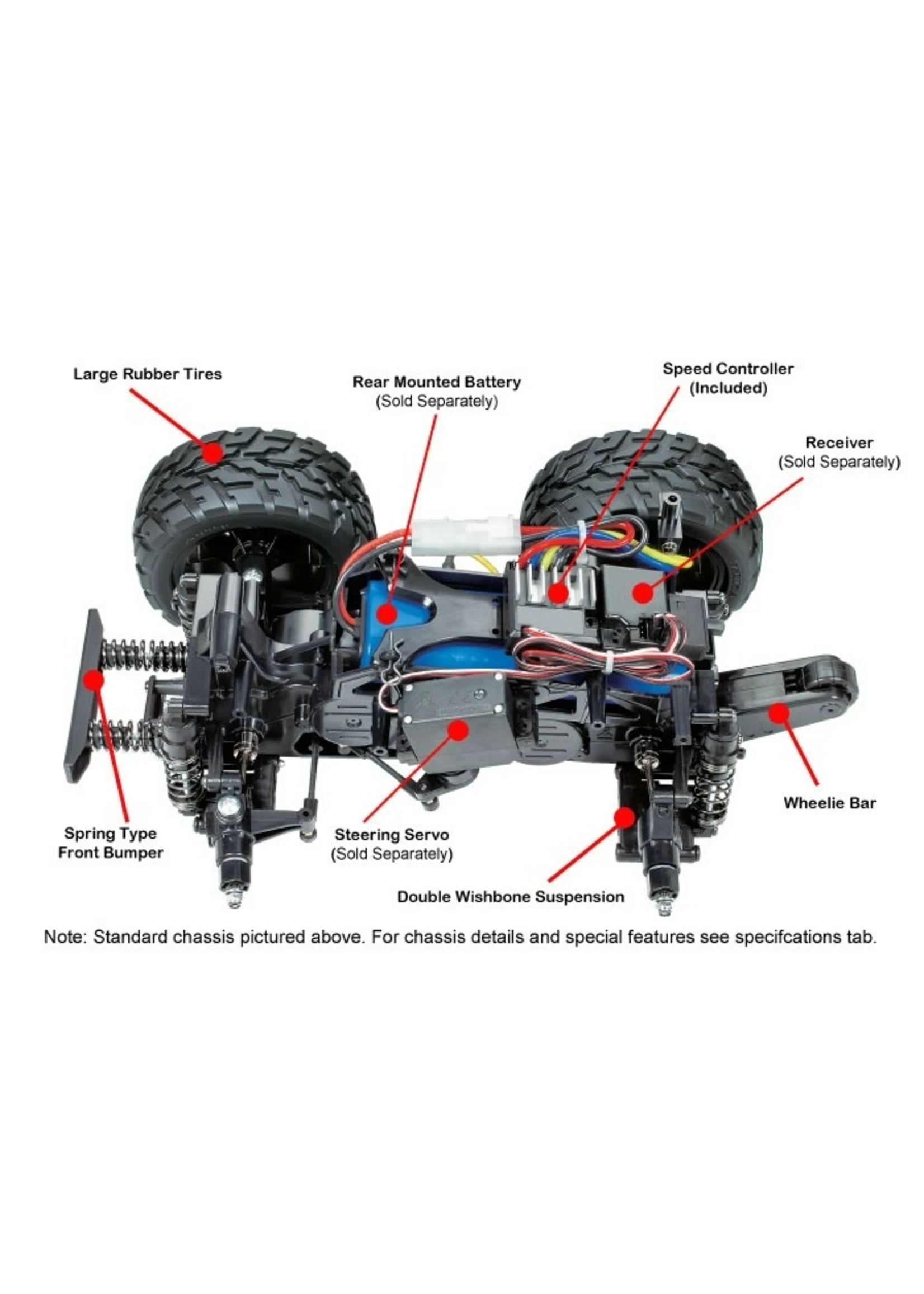

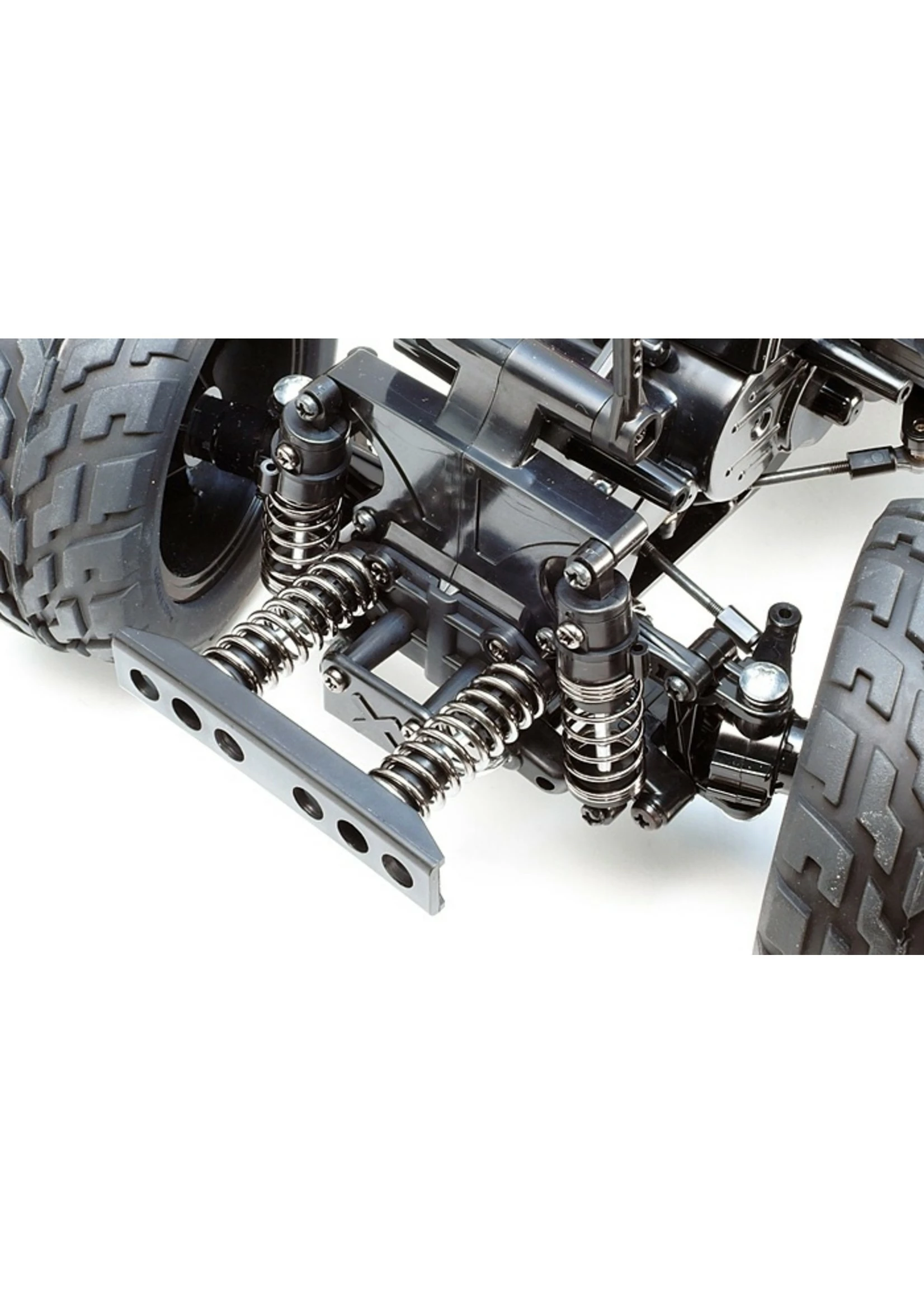

This gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. It utilizes a ‘square’ setup with similar tread and wheelbase lengths. Sealed gearbox is integrated into the frame and protects from dust and debris, while the built-in front and rear differential gears provide smooth cornering. This is reinforced by 4-wheel double wishbone suspension and friction dampers plus a 2-piece tie rod steering setup with the servo on the left for excellent response. Furthermore, it has 5-spoke wheels fitted with big 110mm diameter tires, in addition to a rear support bar with roller to prevent the model from flipping.

• Length: 333mm
• Width: 244mm
• Height:242mm
• Wheelbase: 174mm
• Tread (Front & Rear): 194mm
• Tire Width/Diameter: 50mm/110mm
• Monocoque Frame
• Gear-Driven 4WD
• 3-Bevel Type Differentials
• 2-Piece Steering Tie-Rod
• Front & Rear Double Wishbone Suspension
• Gear Ratio = 18.03:1
• Type 540 Motor

Specs:

Adjustable Gear Ratio: Yes
Bearings: Plastic bushing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS Plastic
Chassis Type: GF-01
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Electronic Speed Control (esc): TBLE-02 S ESC (May be used for brushed and brushless motor applications)
Led Light Buckets: no
Motor: 540-brushed type
Requires: A 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS paint.
Scale: 1/12
Shock Damper: Friction damper
Special Feature 1: Length: 333mm, width: 244mm, height:242mm
Special Feature 6: A driver figure is included.
Special Feature 7: Includes Tamiya TBLE-02S ESC (capable of running brushed and brushless motors)
Suspension: Fully Independent Double Wishbone
Terrain Use: Multi-Purpose
