Tamiya 1/10 Honda Civic SiR (EG6) – TT-02D Chassis Kit

Tamiya 58637A – 1/10 Honda Civic SiR (EG6) – TT-02D Chassis Kit

This exciting drift spec TT-02 assembly kit recreates the Honda Civic SiR (EG6). The EG was known as the Sport Civic in Japan, and was the fifth generation of the famous car. It had a vibrant look, said-to-be inspired by the famous Brazilian carnival atmosphere. The Civic had a 170hp inline-4 DOHC VTEC engine under the bonnet of the top-spec SiR hatchback, which made for plenty of power at the time. The car was a regular sight in Japanese and international racing competitions.

The TT-02 chassis on which this Honda Civic is mounted on is an amazing machine. The TT-02 chassis is an entry-level 4WD full independent suspension assembly kit that offers ease of assembly and easy maintenance. The TT-02D is the Drift Spec variant that includes special parts to make it a fun to drive drifting machine.

TT-02 Chassis Drift Version

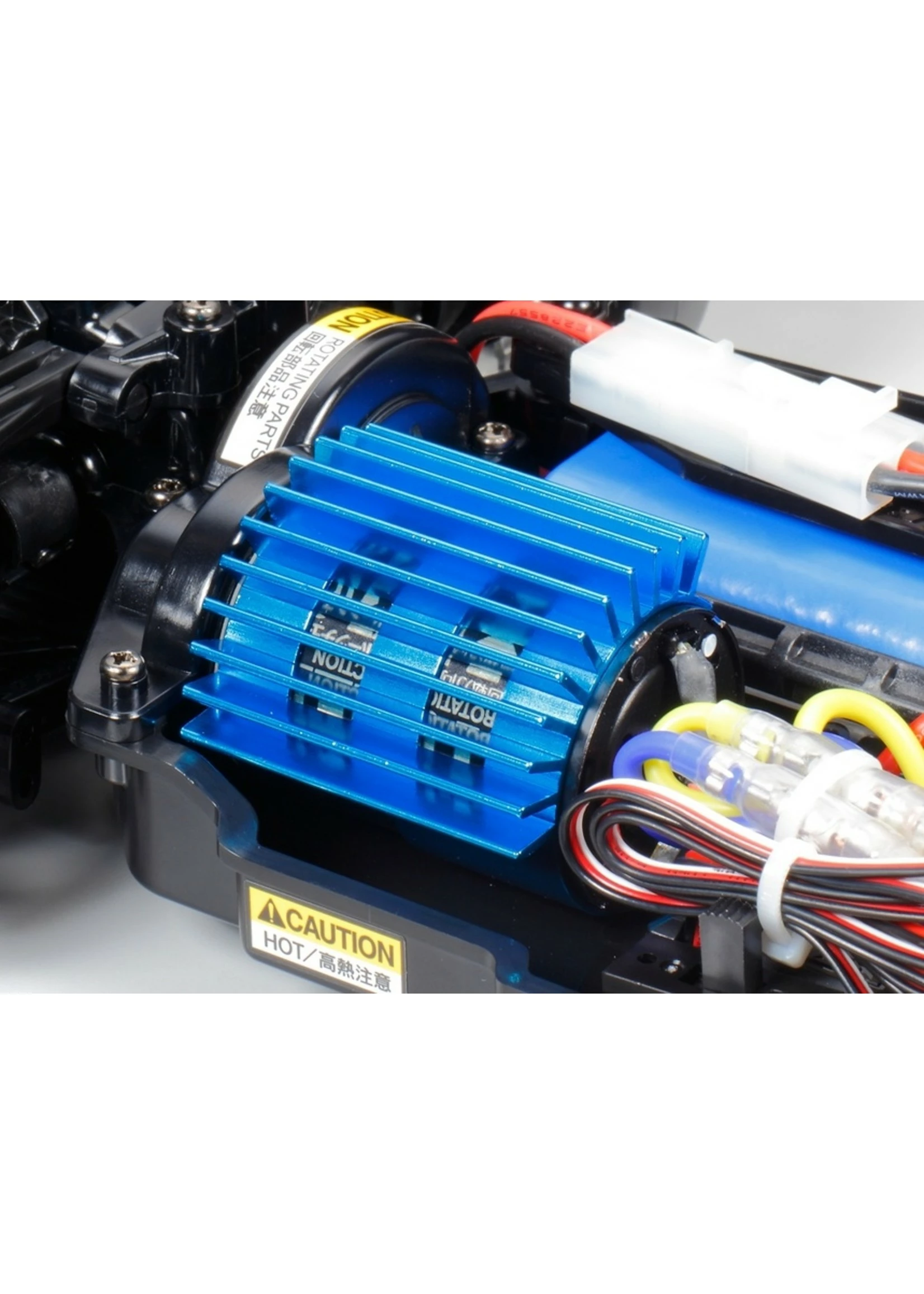

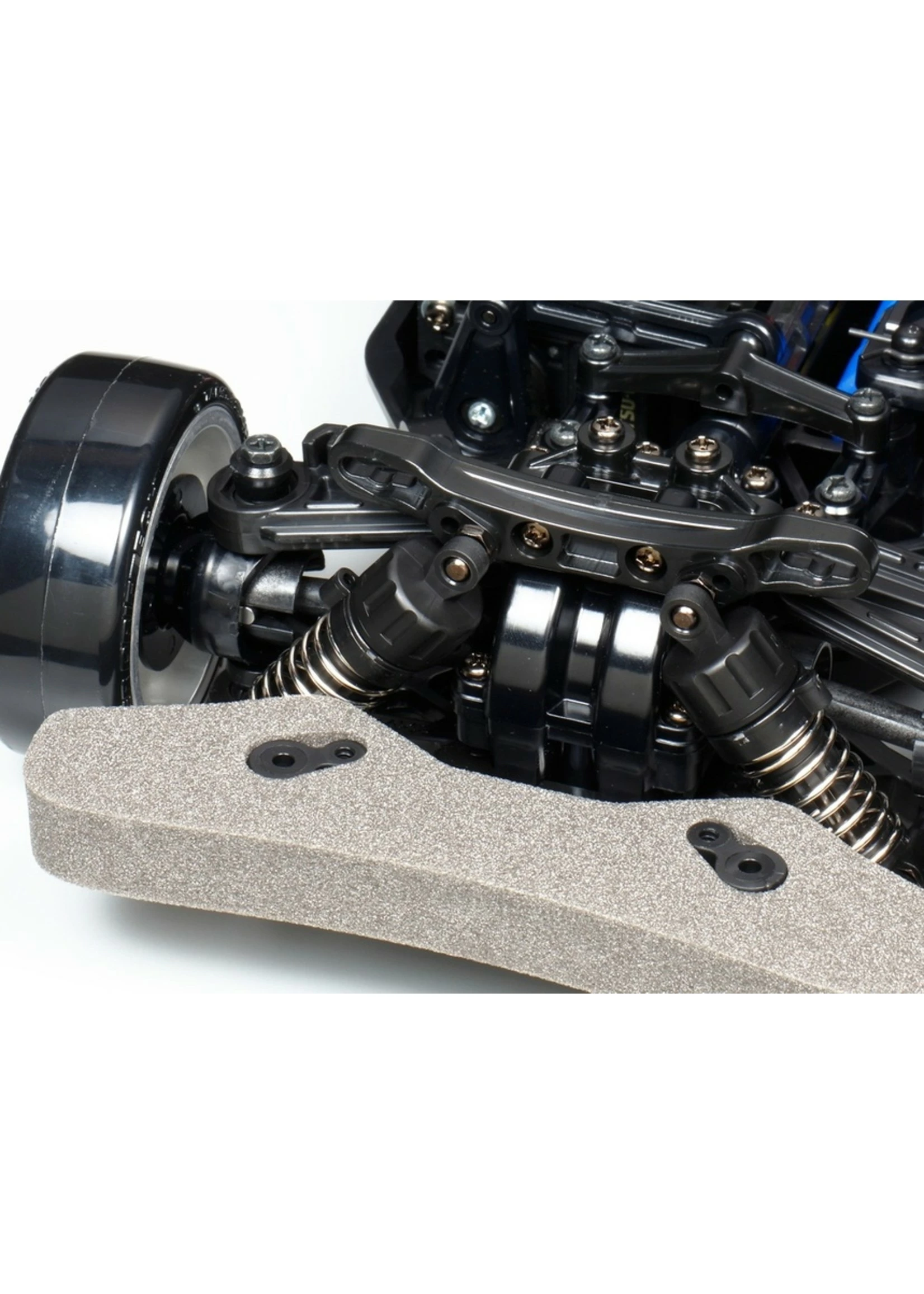

Enjoy the thrill of drifting with this specially tuned drift spec version of the TT-02 chassis. The chassis features drift-specific parts such as 24mm width drift tires (fitted to stylish matte-finish metal-plated wheels), and CVA shock units on the 4-wheel double wishbone suspension. Full ball bearings, an aluminum motor heat sink, and a sport-tuned motor come as standard. Of course, the chassis retains the original TT-02’s excellent drivability, ease of maintenance, and adaptability.

Feaures:

• Length: 414mm, Width: 185mm, Height: 132mm
• Wheelbase: 257mm
• Tire Width/Diameter (Front & Rear): 24/63mm
• Bathtub-type Frame
• Shaft Driven 4WD
• Front/Rear 4-Bevel Resin Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front/Rear CVA Oil Shocks
• Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion)
• Type 540 Sport-Tuned Motor
• Full Ball Bearings
• Electronic Speed Controller (ESC) is included.

Specs:

Adjustable Gear Ratio: Yes
Bearings: Includes full ball bearings
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS Plastic
Chassis Type: TT-02D
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
Motor: 540-brushed type
Required To Complete: 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS paint.
Scale: 1/10
Shock Damper: CVA Oil Filled
Suspension: Fully independent double wishbone
Terrain Use: On-Road
