Tamiya 1/10 Audi Quattro A2 Kit – TT-02 Chassis

58667A – 1/10 Audi Quattro A2 Kit – TT-02 Chassis Kit

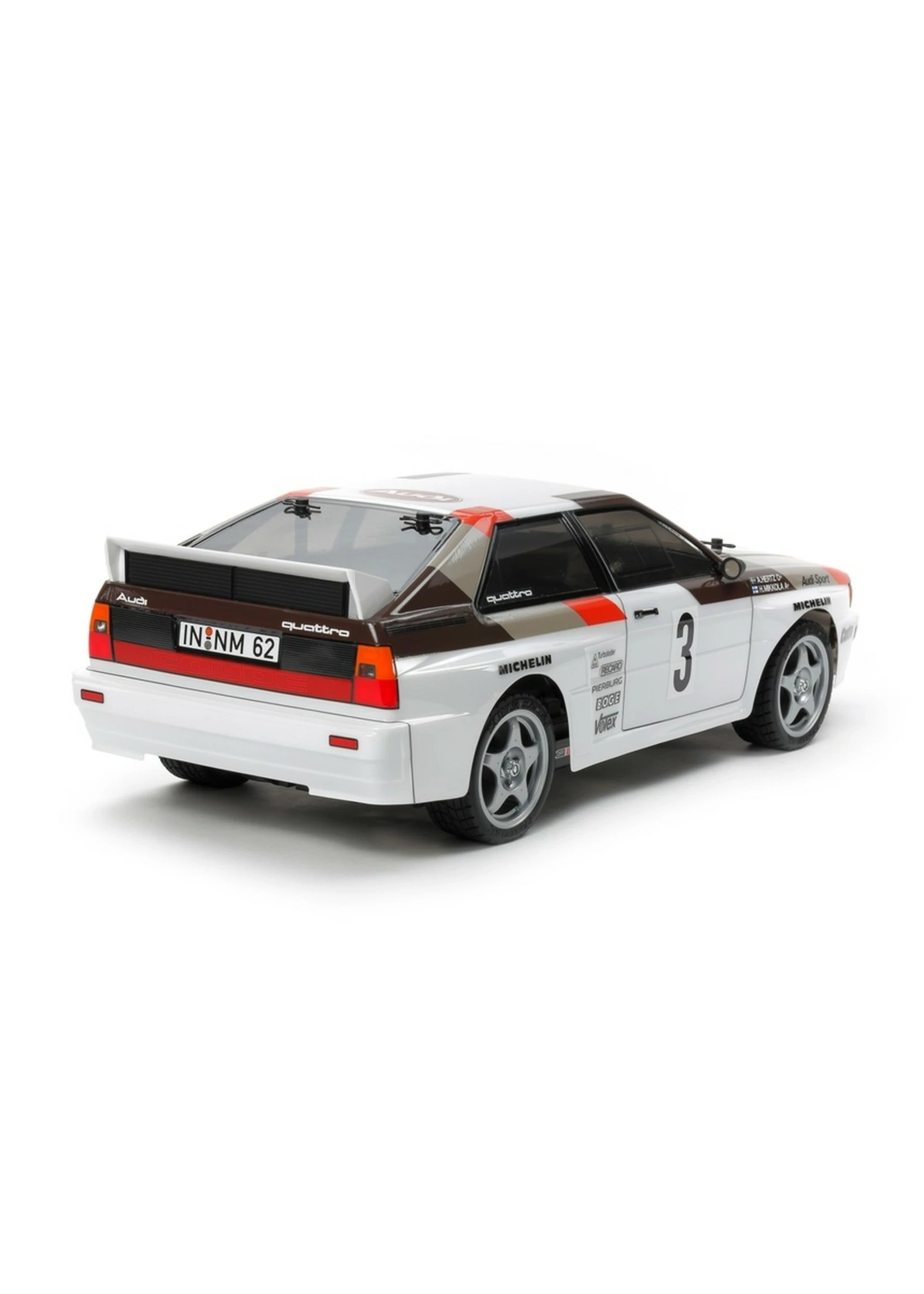

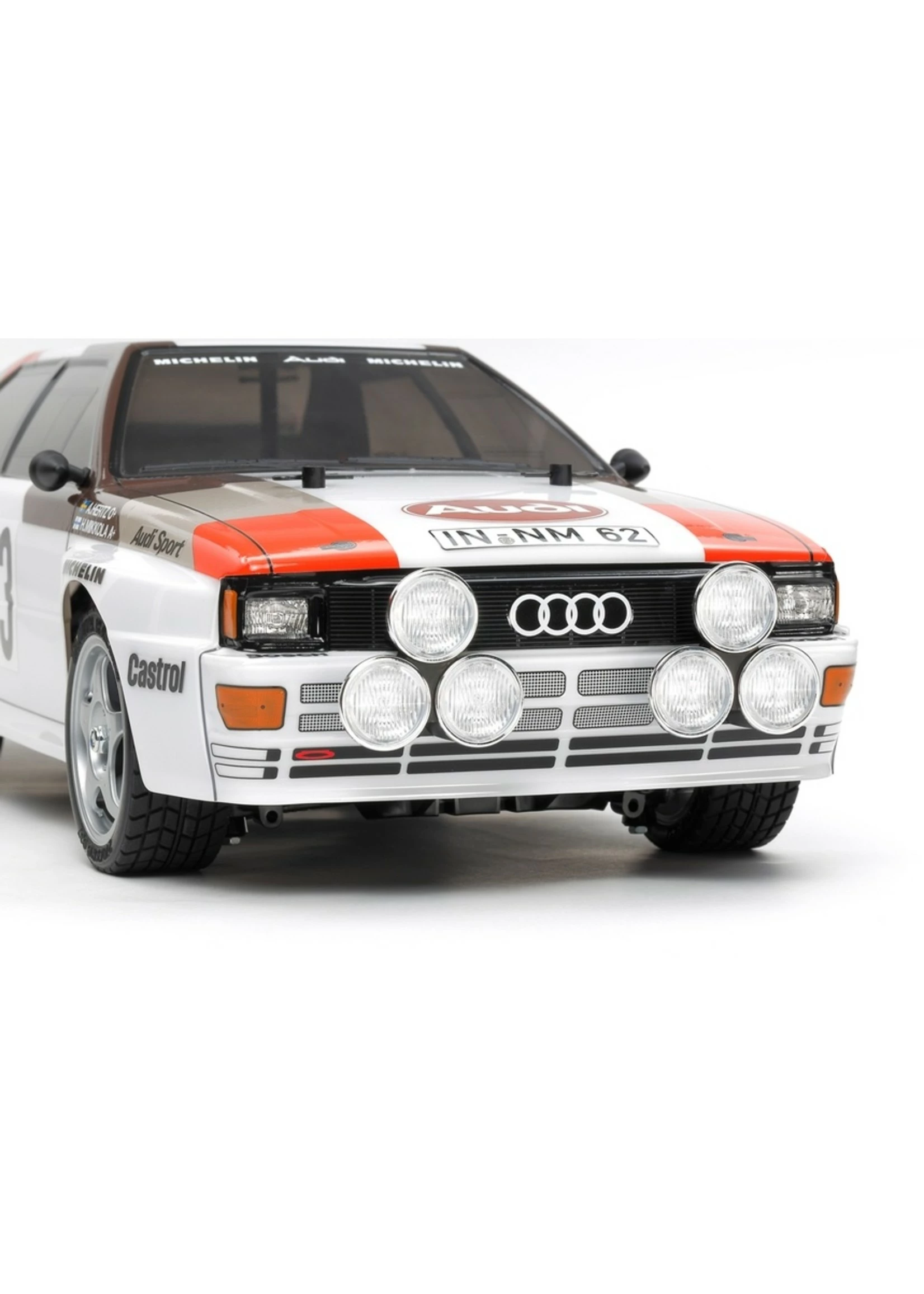

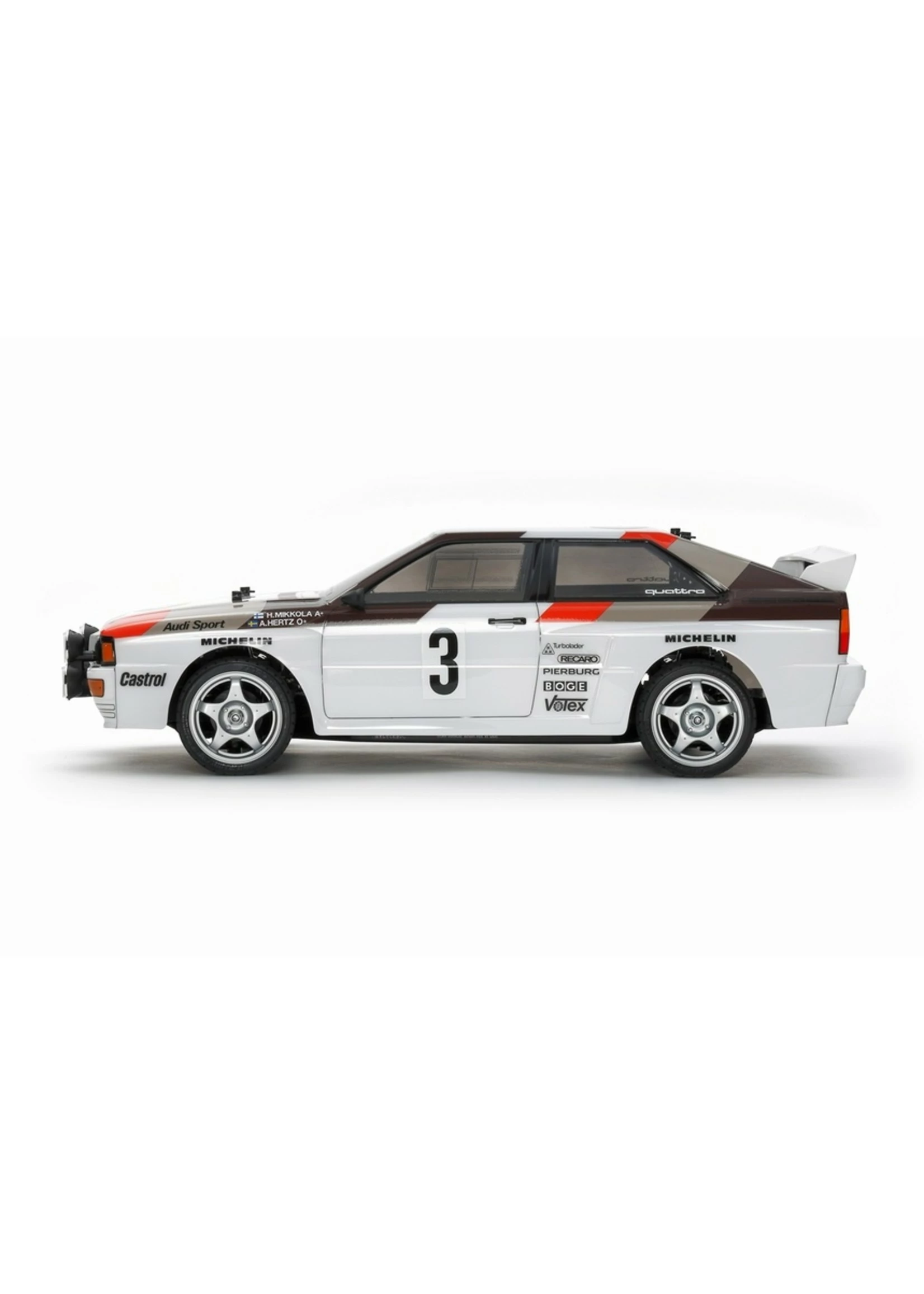

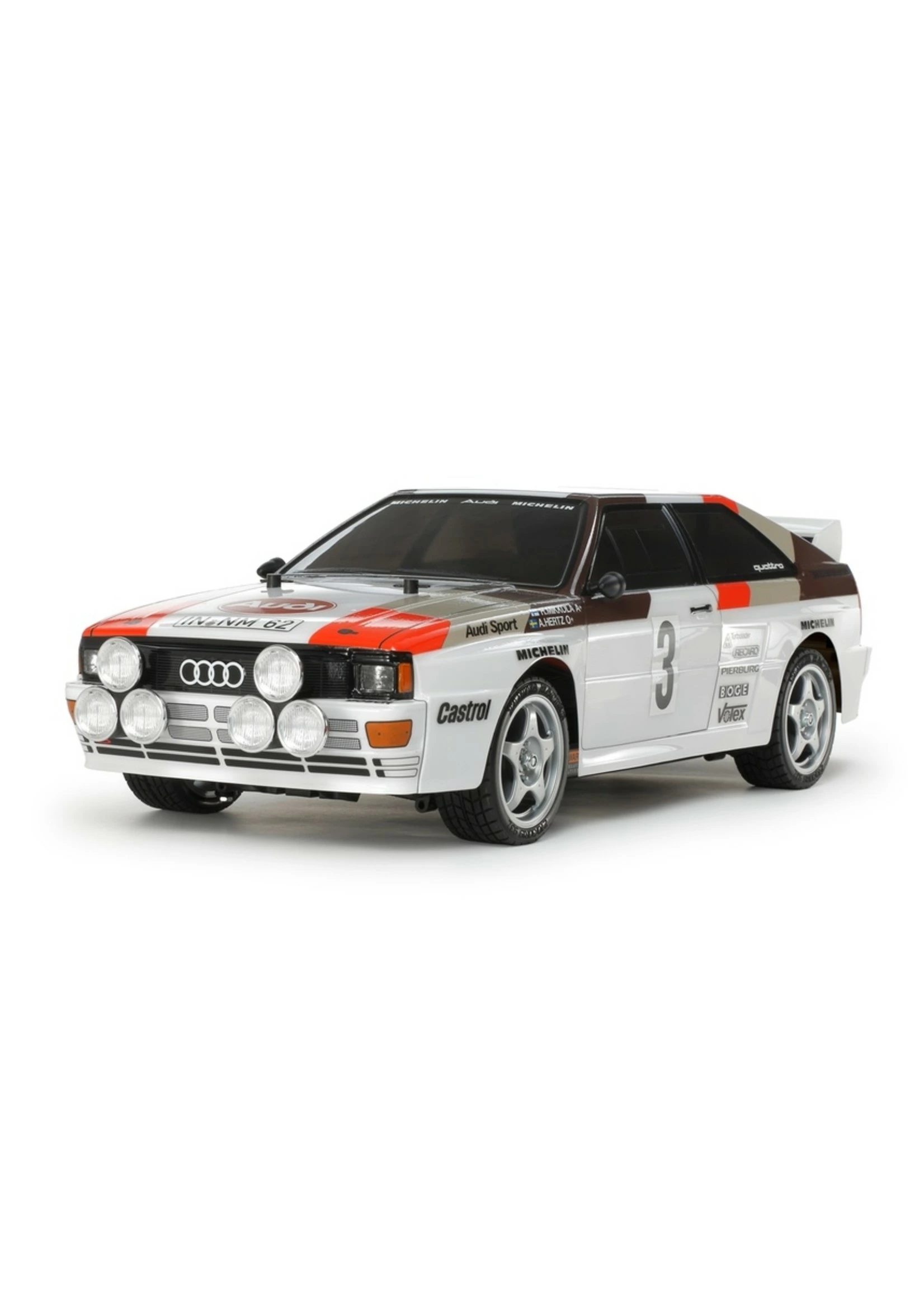

The Audi Quattro A2 is an iconic Rally Race Car that made its mark in the 1980’s. Tamiya’s 1/10 scale radio control replica brings rally racing fun to hobbyists on the adaptable and easy-driving TT-02 chassis.

TT-02: Adaptable, Balanced Shaft Driven 4WD

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

Features:

• 1/10 scale R/C model assembly kit. Length: 458mm, width: 187mm.
• A2 body is molded accurately in durable polycarbonate.
• Features separate metal-plated ABS parts for front and rear light cases, plus fog lamps. Side mirrors, wing and wing caps are molded in white ABS.
• Light cases are compatible with separately sold LEDs; fog lamps are not.
• 5-spoke wheels are molded in silver, and paired with racing radial tires.
• The TT-02 chassis is an adaptable and balanced design with excellent stability, plus features such as identical suspension arm and upright components for ease of assembly.
• 4-bevel differential gears and 4-wheel double wishbone suspension.
• Includes Tamiya Torque Tuned Motor.
• Requires: 2-Channel Radio, servo, 7.2-7.4volt battery pack & compatible charger, and Tamiya PS paint.
• An extensive TT-02 option parts line-up offers a number of opportunities to tune your car.

Specs:

Adjustable Gear Ratio: Yes
Bearings: Plastic bushing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS Plastic
Chassis Type: TT-02
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)Motor: Brushed 540 Type
Requires: A 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS paint.
Scale: 1/10
Shock Damper: Friction type
Suspension: 4-wheel fully independent double wishbone
Terrain Use: On-Road
