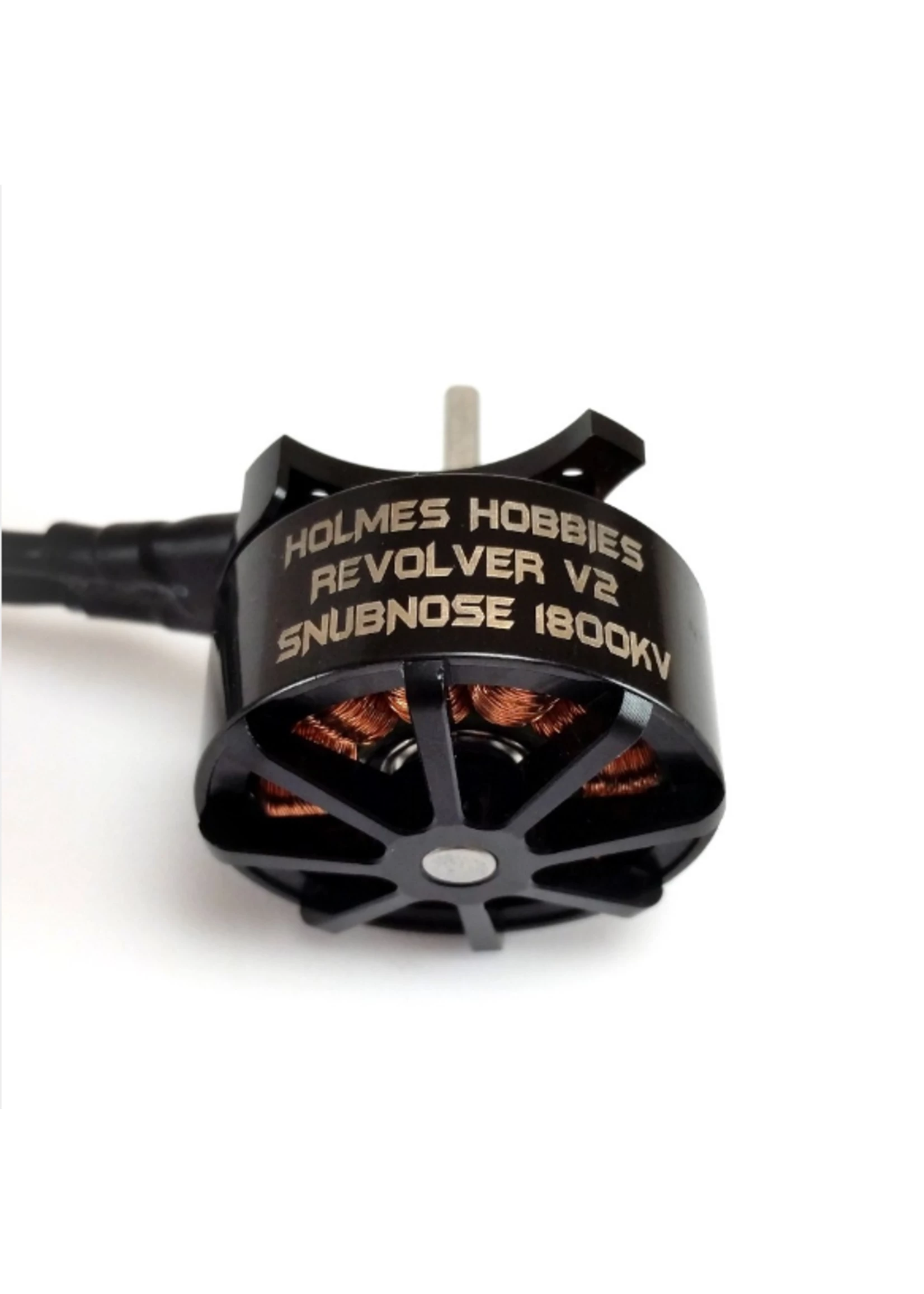

Holmes Hobbies 120100066 – Revolver V2 Snubnose 1800kv Motor

Holmes Hobbies 120100066 – Revolver V2 Snubnose 1800kv Motor

Do you need a small and light motor for your vehicle, but do not want to sacrifice torque? Do you need the finest sensorless low speed control? The Revolver Snubnose 540 is an extremely lightweight choice with exceptional startup and feel that rivals brushed motors!  The Snubnose model is 1/2 of the “540 Revolver”, and is fantastic for vehicles wanting lower CG and lighter weight for agility.

Applications:

• 1:10 scale Trail and Scale rigs (SCX10, SCX10ii, Wraith 1.9, Enduro, TRX4 Sport,TrailFinder 2, etc..)
• Competitive RC Rock Crawling (RECON G6; SORRCA; WRCCA; etc..)
• Educational, Recon, or Battle Robots
• Snubnose is NOT recommended for “rock racers” or 2 speed vehicles, such as the TRX4, Wraith, Bomber, etc…

Features:

• Bolts up to standard “540” mount
• Extremely small and light, yet torque dense
• 1/8″ shaft fits common R/C pinions
• 200mm 16ga silicon motor leads with bullet plugs

Specs:

• Brushless DC Outrunner Motor
• 14 pole 12 slot stator
• 2-4S LiPo voltage
• 1/8″ D shaft output (standard 540)
• 25mm mounting pattern for M3 screws (standard 540)
• 73g without wires, 88g with wires
• 35mm diameter x 26.7mm long
• 28x10mm stator
