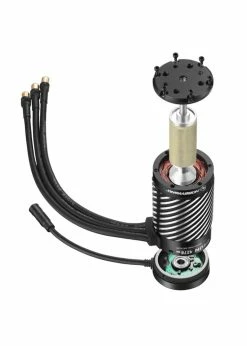

Hobbywing Ezrun MAX8 Brushless Motor 4278SD-2250KV

HobbyWing 30402800 – Ezrun MAX8 Brushless Motor 4278SD-2250KV

High Torque

The 4 pole design will guarantee the motor to produce very large amounts of torque, a much faster acceleration response and a very stable output of power to the drivetrain.

High Efficiency

Hobbywing’s temperature control technology has been designed to protect the motor from being damaged by heat thus less heat more efficient the motor will run and perform. The output performance of this motor has an efficiency rate of up to 90% meaning that if the energy consumption of the motor is at 1000 watts your guaranteed that 900 watt of that power will be available and no less

Great Construction

The motor housing is made from hard anodized aluminum, motor windings are wound from pure oxygen-free double insulated copper wire, the advanced rotor structure is designed to handle high temperature from the use of rare earth magnets, output shaft from high quality polished alloy steel and the imported bearings which are implemented are high precision metal caged for a minimum to zero friction which in turn will guarantee strength, outstanding performance, high durability and smoothness of the motor.

Compatible With The EZRUN MAX8 ESC

When pairing the EZRun 4274 motor with the Hobbwing EZRun MAX8 (150amp) ESC, the excellent match between ESC and motor will give you large torque plus a very smooth and linear power band.

Features:

• Advanced Sensored brushless technology
• Waterproof, advanced sensored motor
• Designed for SPEED & POWER
• Aggressive Launch

Specs:

Model	EZRUN 4278 SD
PN	30402800
Pole	4
KV(No-load)	2250KV
R. (Ω)	0.0048Ω
Current No-load（A）	5.0A
Motor D.&L（mm）	42mm / 78mm
Shaft D.&L of the projecting part（mm）	5mm / 18.5mm
LiPo(S)	3-6S Lipo
W (g)	455g (no wire）
Applicable	1/8 truck, crawler
Best match with	MAX 8 G2 ESC
