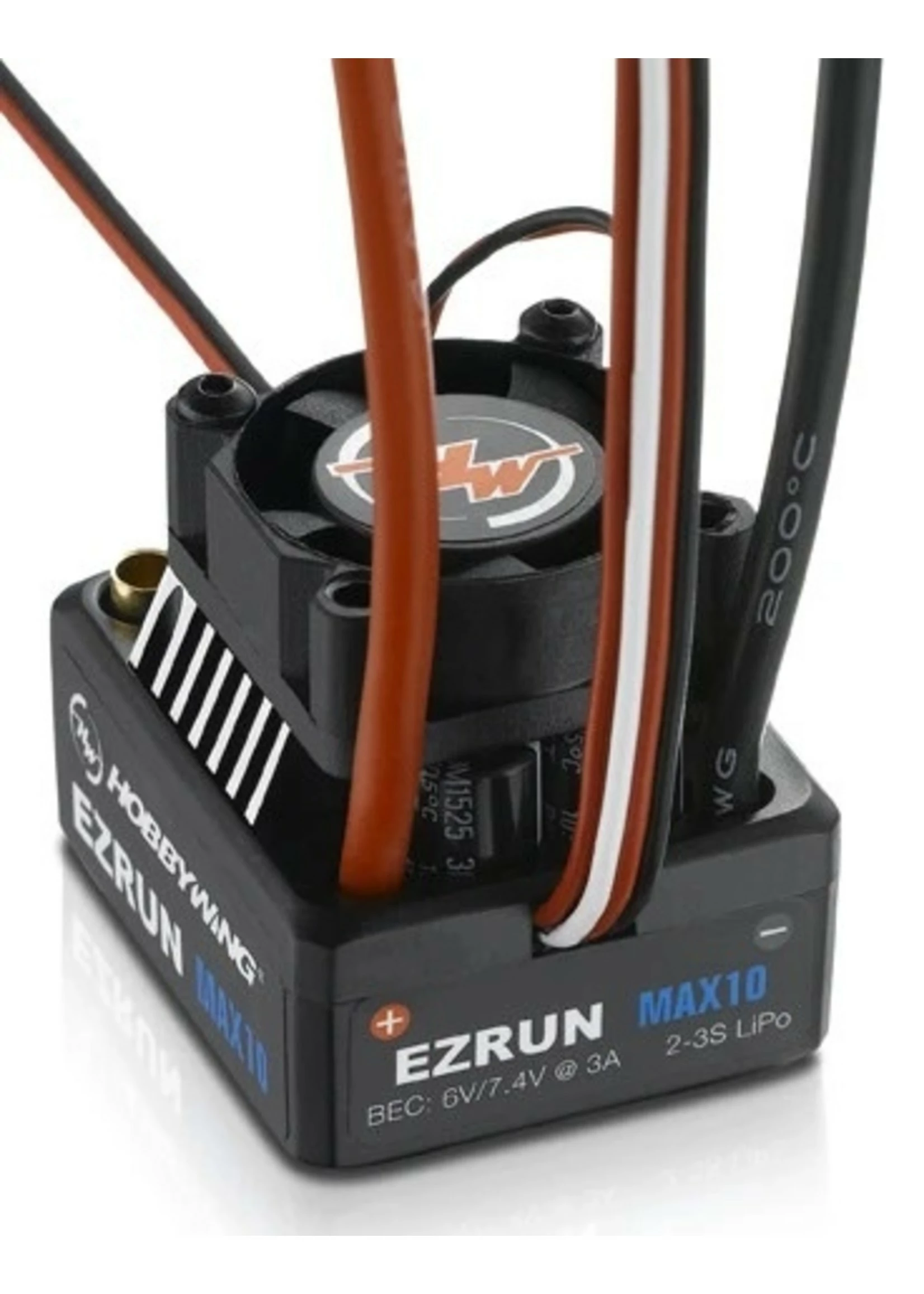

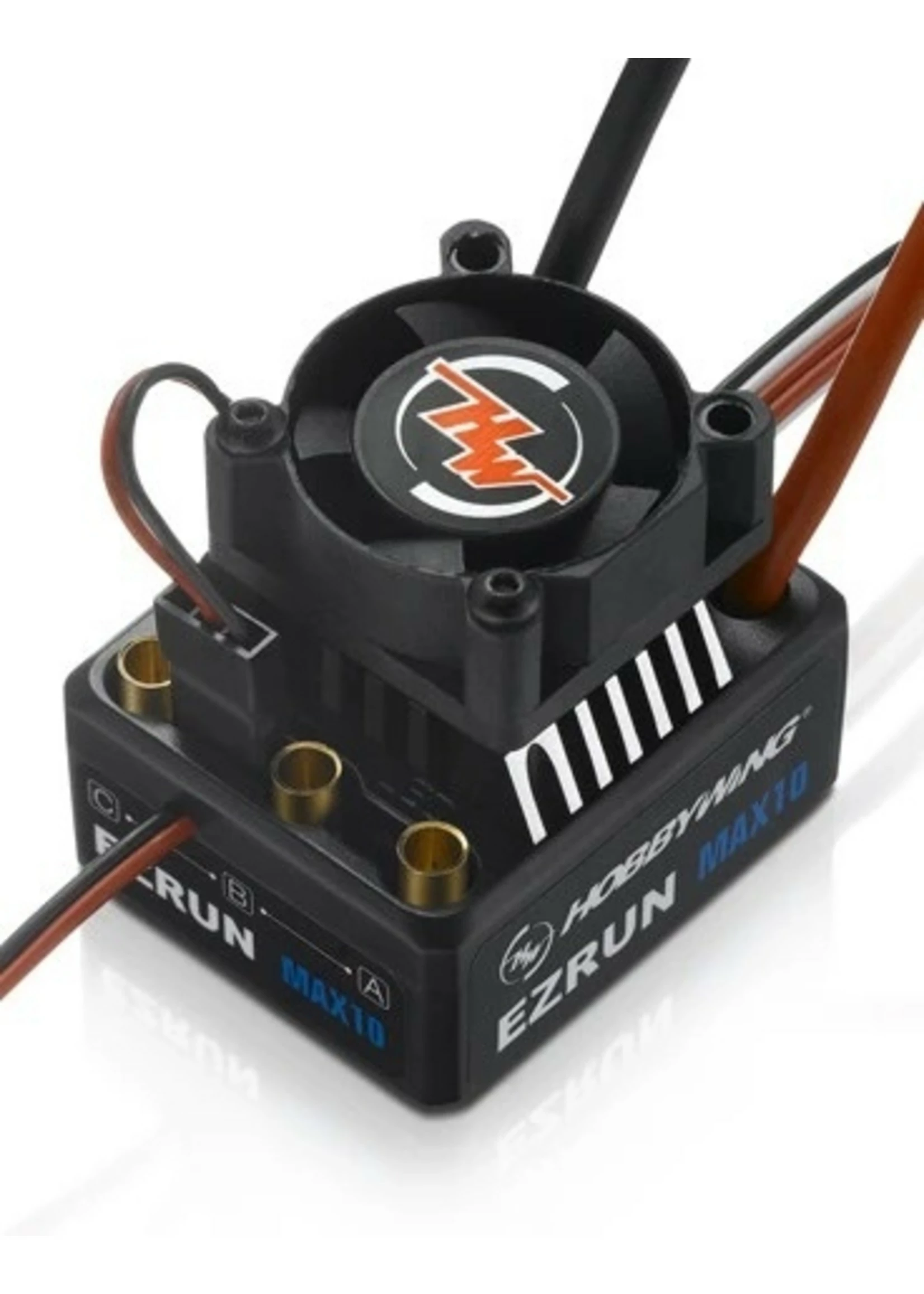

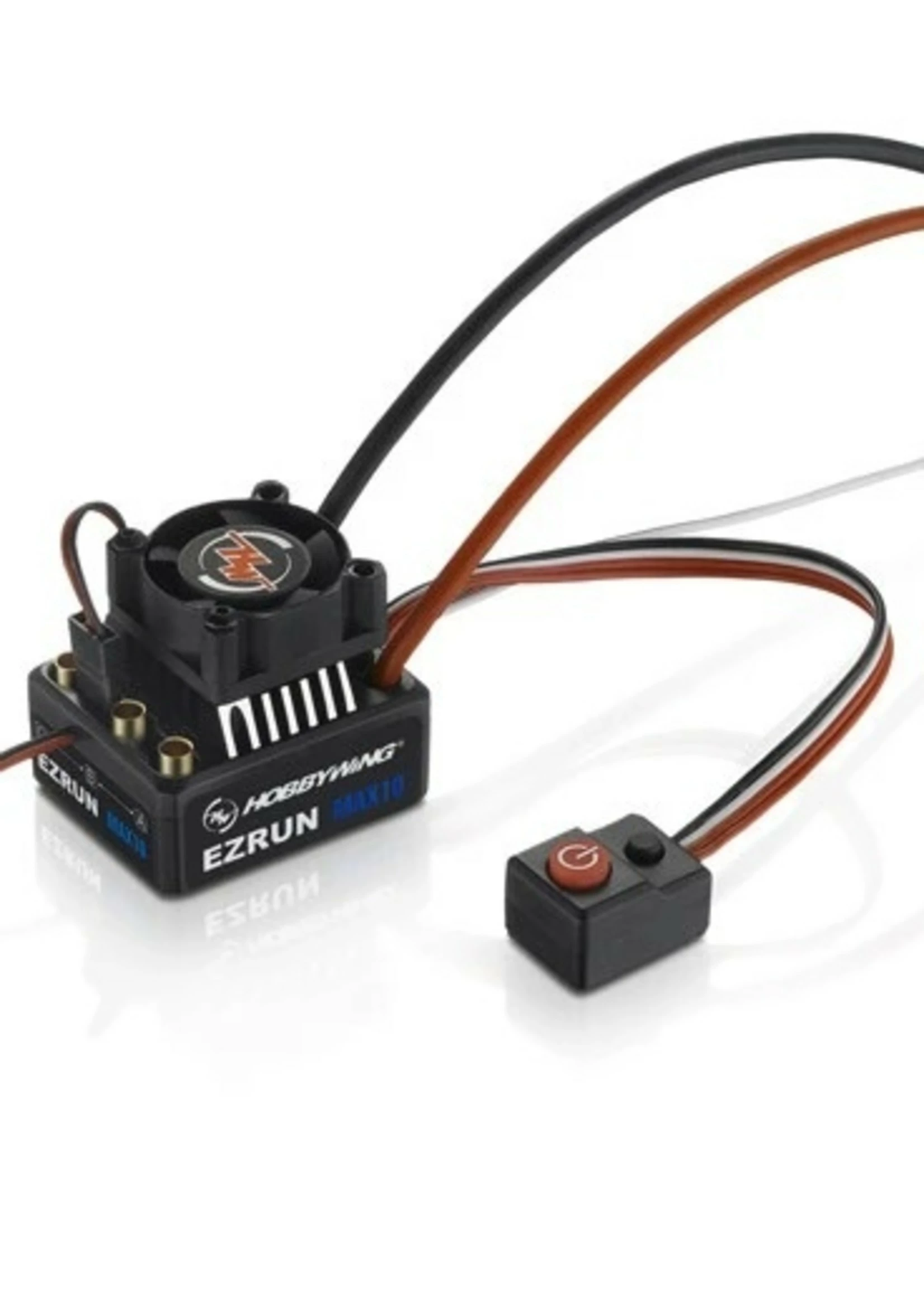

Hobbywing 30102602 – EzRun Max10 ESC (2-3S)

Features:

• ESC is compatible with both sensorless and sensored brushless motors (only in sensorless mode).
• Fully waterproof design for all conditions.
• Super internal switch-mode BEC with switchable voltage of 6V/7.4V for usage with high torque and high voltage servos.
• Motor Thermal Protection: It will be available after you plug the temperature monitoring cable on the ESC into the temperature monitoring port (marked with “TEMP”) at the bottom of the matching HOBBYWING motor.
• Highly reliable electronic switch design prevent mechanical switch failure due to dirt, water, dust and etc.
• Proportional brake with 9 levels of maximum brake force and drag brake force.
• 5 levels of acceleration/punch from soft to aggressive for different vehicles, tires and tracks.
• Capacitor Protection:Innovative Capacitor Protection effectively protects capacitors from exploding and causing irreversible damage to the ESC from overloading. • Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail safe (throttle signal loss protection).
• Single-button ESC programming and factory reset.
• Advanced programming via portable LED program card, multifunction LCD program box or WiFi module.
• Firmware upgrade via HOBBYWING multifunction LCD program box or WiFi module (item sold separately).

Includes:

• (1) Ezrun MAX10 ESC
• (3) 14 AWG, 200C Black wires for a brushless motor
• (1) Double side tape
• (2) Heat shrink tube
• User’s manual
• A HOBBYWING decal

Specs:

Scale Vehicles: 1/10th
Cont./Peak Current: 60A / 450A
Motor Mode: Sensorless
Input: 6-9 Cell NiMH 2-3S LiPo
Motor Limit:
2S LiPo/ 6S NiMH: KV≤6000
3S LiPo/ 9S NiMH: KV≤4000
(3652 size motor)
BEC Output: 6V/7.4V Switchable, Continuous Current of 3A (Switch-mode)
Programming Port: FAN/PRG Port
ESC Programming: Via the SET button/LED Program card /LCD Program Box/ WiFi Module
Switch Mode: Electronic Switch
Capacitor Protection: Yes
Waterproof: Yes
Size (L/W/H) mm: 39.4/32.8/23
Weight g: 67.8g
