ARA4303V3T2 – 1/10 SENTON 3S BLX V3 4WD Brushless Short Course Truck with Spektrum RTR – Red

Extreme toughness and outrageous 50+ MPH speed separate the 1/10 scale, ready-to-run SENTON™ 4X4 3S BLX Short Course model from rest of the pack. Precision aluminum, tough steel and composite materials come together for an easy-to-maintain, super-durable vehicle design that’s now been upgraded to further increase the original Short Course truck’s already impressive performance and durability.

Features:

Stronger chassis and retained hinge pin plates
Steering with more clearance for stones
Castellated slipper pad and sliding gear mesh
Plastic locknut for slipper
23T Spline servo saver
37T 1.35Mod diffs with silicone O-rings
Power Module with sliding gear mesh and improved dirt management
Rubber shielded bearings throughout
Oil-filled shocks with silicone O-rings
Front and rear bumpers
Tough gunmetal colored multi-spoke wheels
Vented multi-terrain dBoots® Fortress™ SC tires
BLX100 2S/3S waterproof* ESC
*For details on waterproof standards, refer to the instruction manual.
IC5™ connectors (EC5™) compatible
Signature easy-access modular design
Easy-access power module
Easy-access electronics module
Easy-access diff module removal front and rear
Double wishbone suspension front and rear
Metal-geared differentials
Extended height dirt defenders
Adjustable ride height
Adjustable body mounts
Adjustable turnbuckles
High-speed center driveshaft support
Wheelie bar
50+ MPH (80+ km/h) speed achievable in optimum driving conditions on 3S LiPo

The SENTON™ 4X4 3S BLX RTR is DESIGNED FAST, DESIGNED TOUGH — built for exciting bashing speeds and extreme, all-terrain durability. New features that enhance its unstoppable performance include a stronger chassis and retained hinge pin plates; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh; and rubber-shielded bearings throughout.

It also now includes a Spektrum™ SLT3™ transmitter and SLR300 receiver. The transmitter is ergonomically designed for long periods of fatigue-free bashing and has a foam wheel for precise fingertip control, plus an improved hand grip and trigger feel. New bashers will be able to set throttle limits at 50% or 75% until they are ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

ARRMA® now powers the SENTON™ 4X4 3S BLX with a brushless system featuring its BLX100 ESC and the Spektrum™ Firma™ 3200Kv brushless motor. The combination provides incredible torque, acceleration and speed. The transmission and chassis are ruggedly engineered to take full advantage of the electronics’ power.

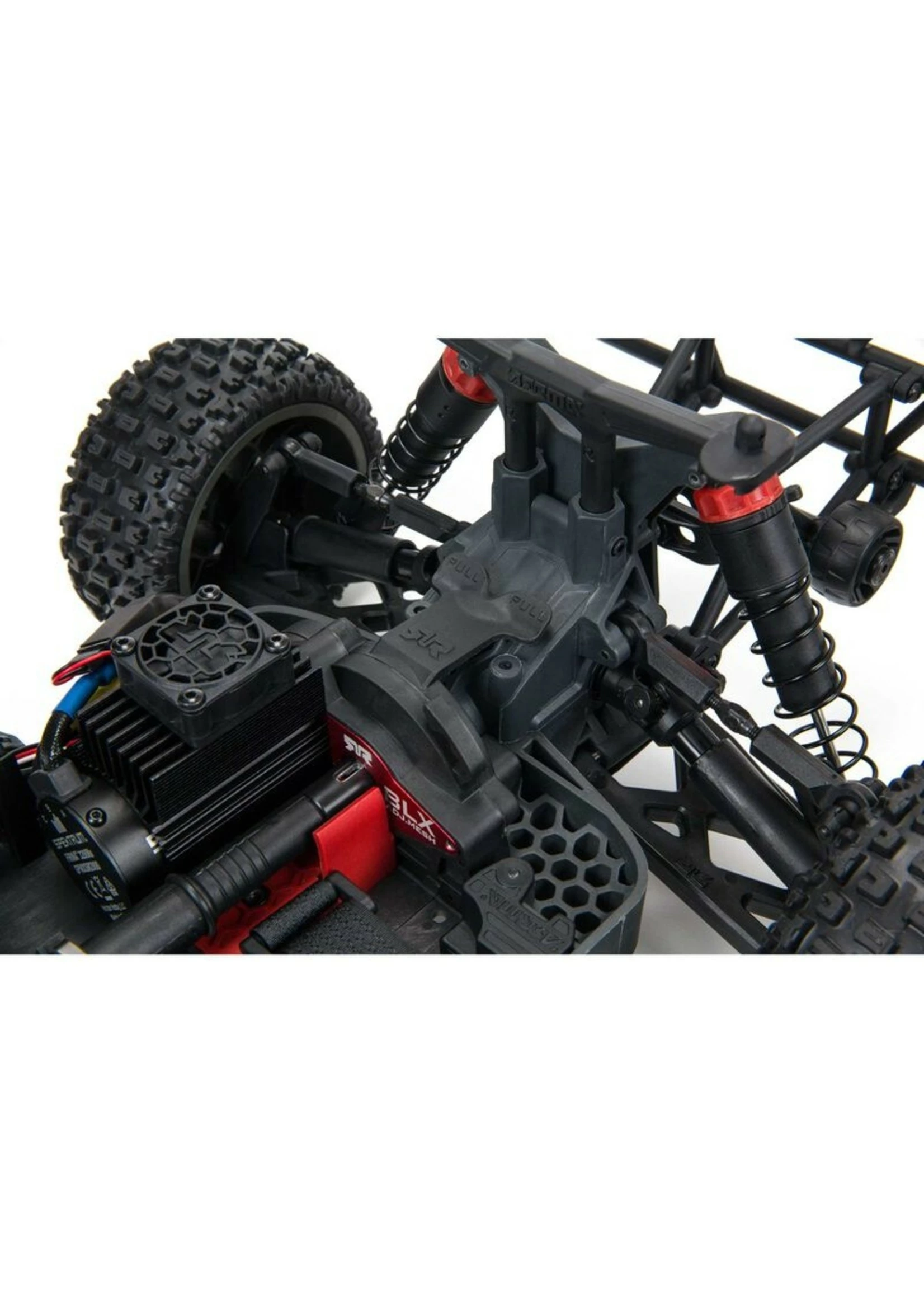

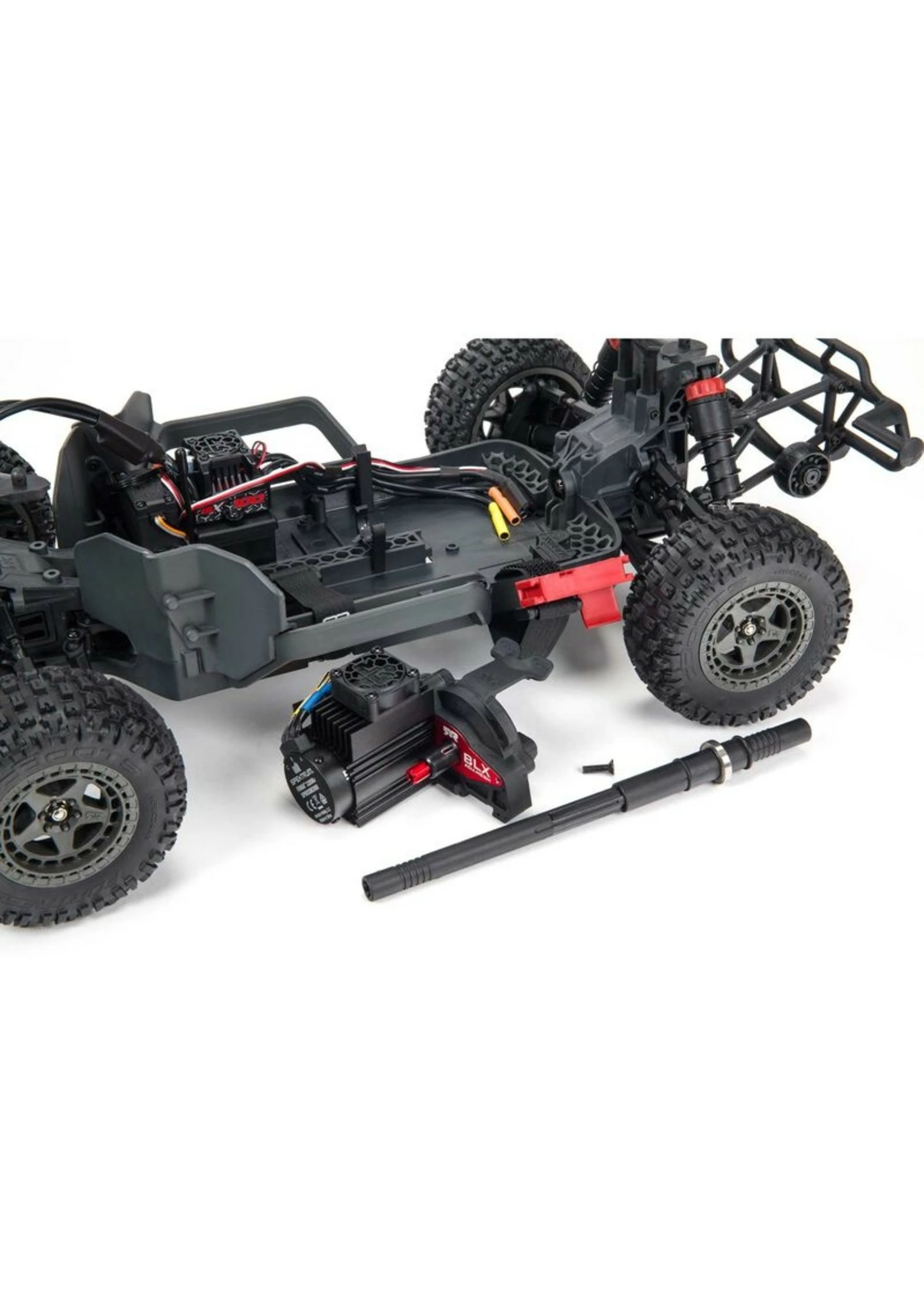

It has the ingenious modular design perfected by ARRMA® engineers for easy component access and maintenance. The power module, with improved dirt management, consists of the motor with ARRMA® heatsink and cooling fan, plus motor plate, slipper clutch assembly and gear cover. The power module can be detached from the chassis as a complete unit by removing just one screw. With the power module removed, the slipper clutch can be reached easily for adjustments by taking out three screws that attach the gear cover. The gear ratio can be finely tuned as the power module now uses a sliding motor mesh design.

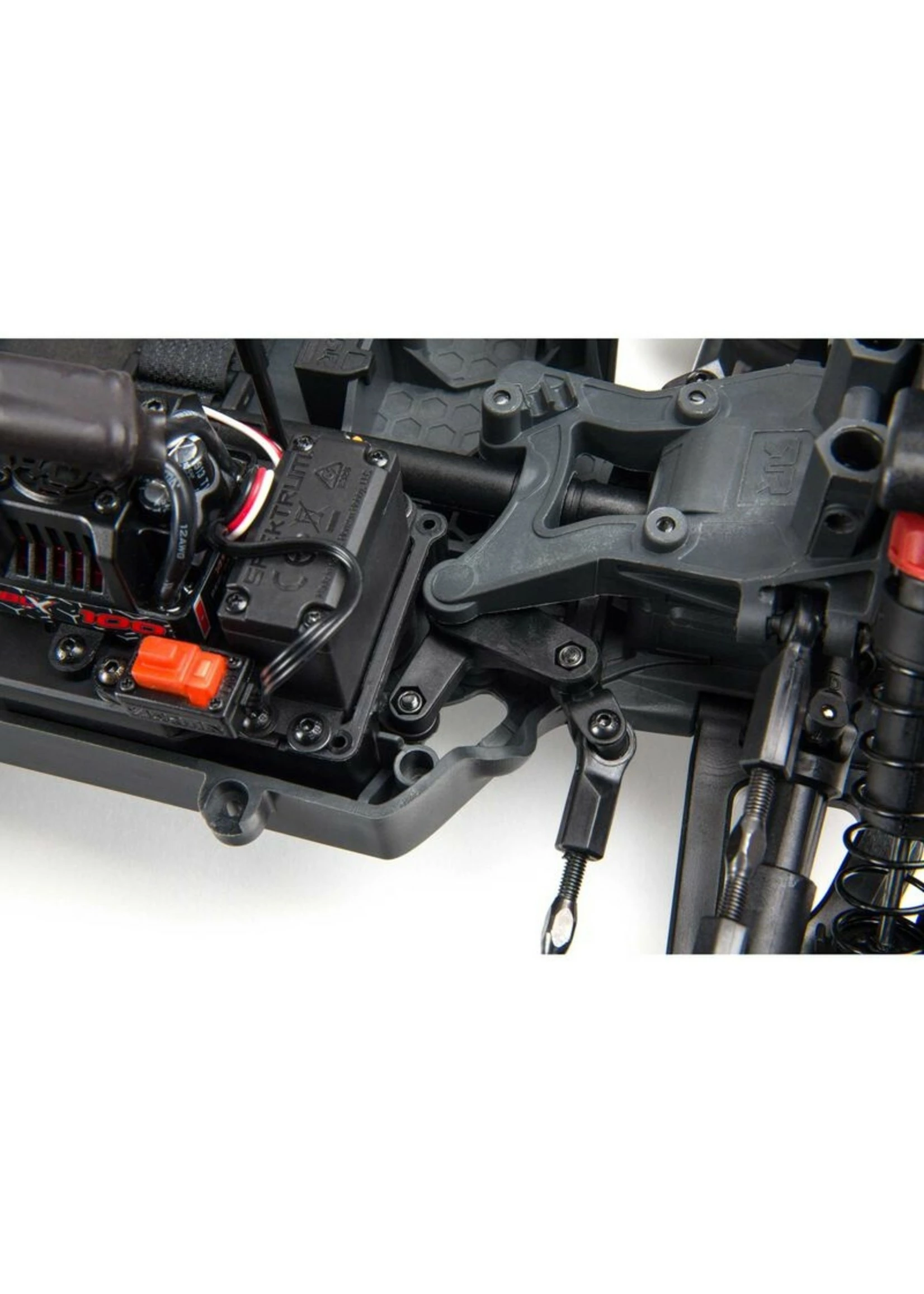

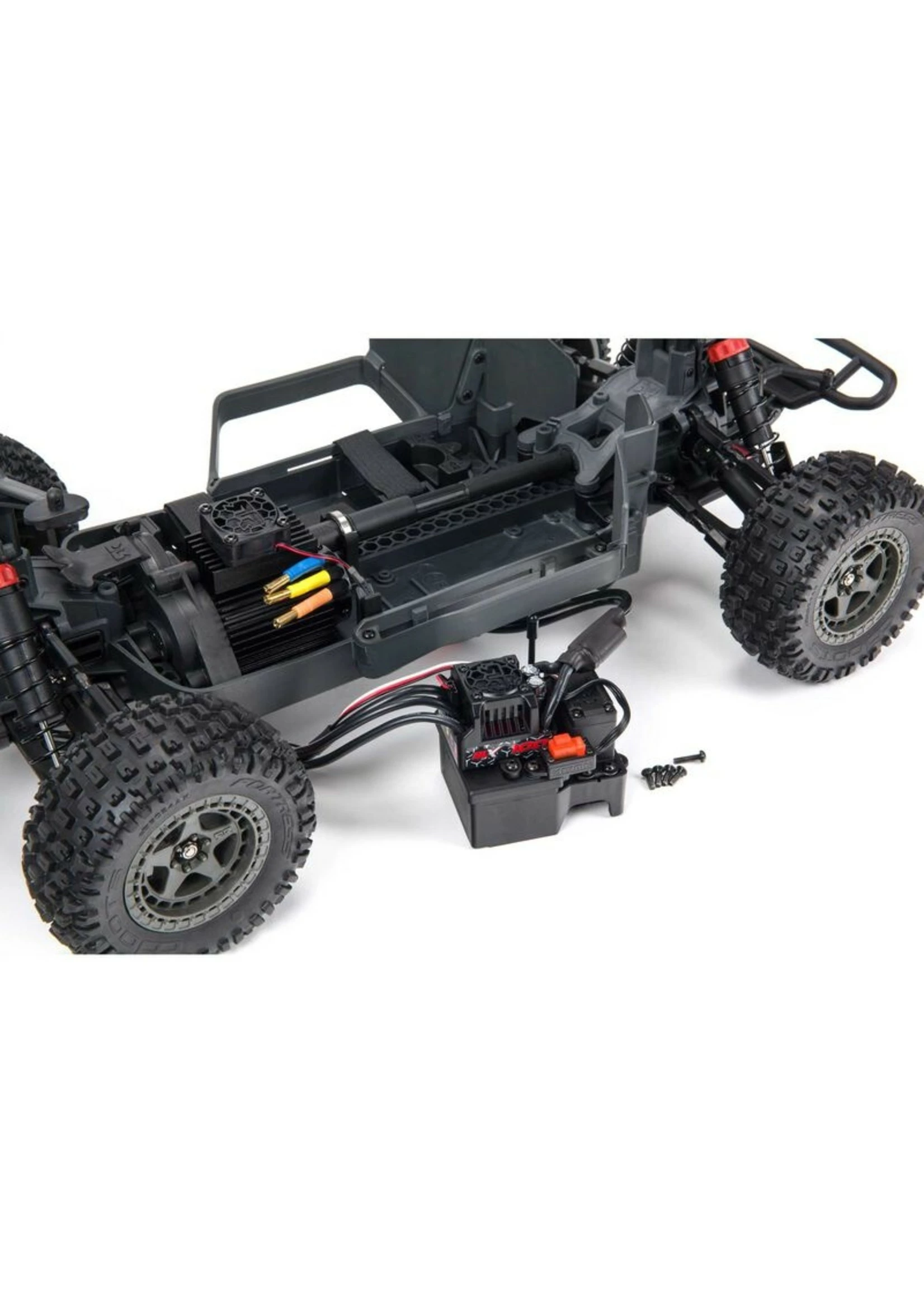

A two-piece molding screwed to the truck’s chassis serves as its electronics module, containing a waterproof receiver box, servo mount and ESC tray. The SLR300 receiver mounts inside the receiver box for protection from dirt and moisture. The ultra-compact ESC is screwed to the top of the module, allowing quick access to the on/off switch, while the servo mounts to the side. All three components can be removed together, quickly and easily.

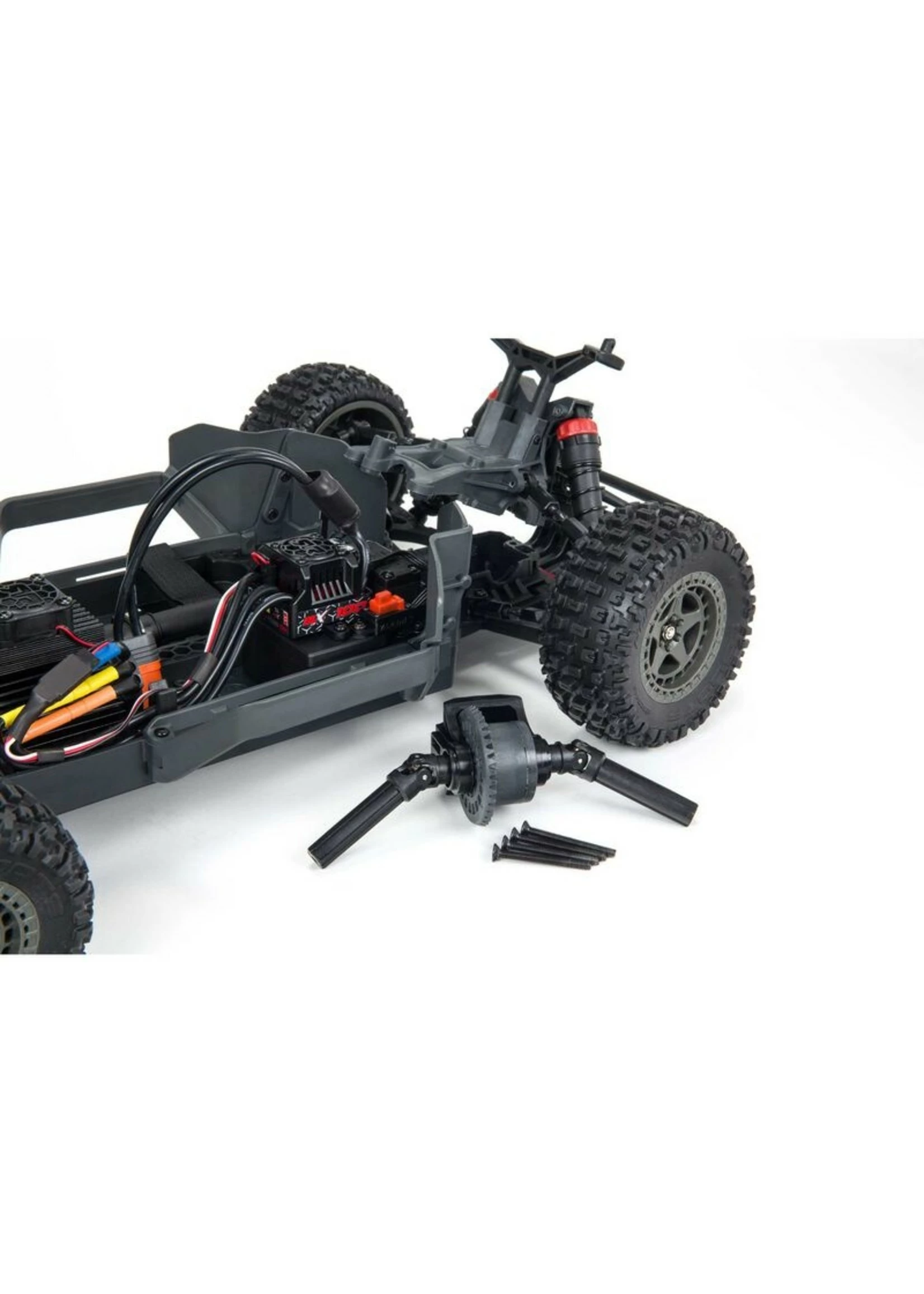

The differential module houses each differential unit in an innovative yoke design. Only eight screws need to be removed to release the front and rear yokes. The power module can then be detached, allowing you to pivot the gearbox cases for differential access. The SENTON™ 4X4 3S BLX RTR comes brushless-ready with 37T 1.35mod diffs with silicone O-rings. The large gears can withstand huge torque, and internal metal gears have been chosen for reliability during extreme bashing.

Its full-time 4WD transmission uses strong front, rear, and centerline telescopic driveshafts that can’t be lost during heavy impacts, unlike dogbones. A simple, dependable, responsive steering assembly complements the ultra-reliable drive system and features a servo horn with built-in servo saver. The SENTON™ 4X4 3S BLX RTR includes the waterproof Spektrum™ SPMS651 metal-geared digital servo for 15% more torque than the previous version’s ADS-7M servo.

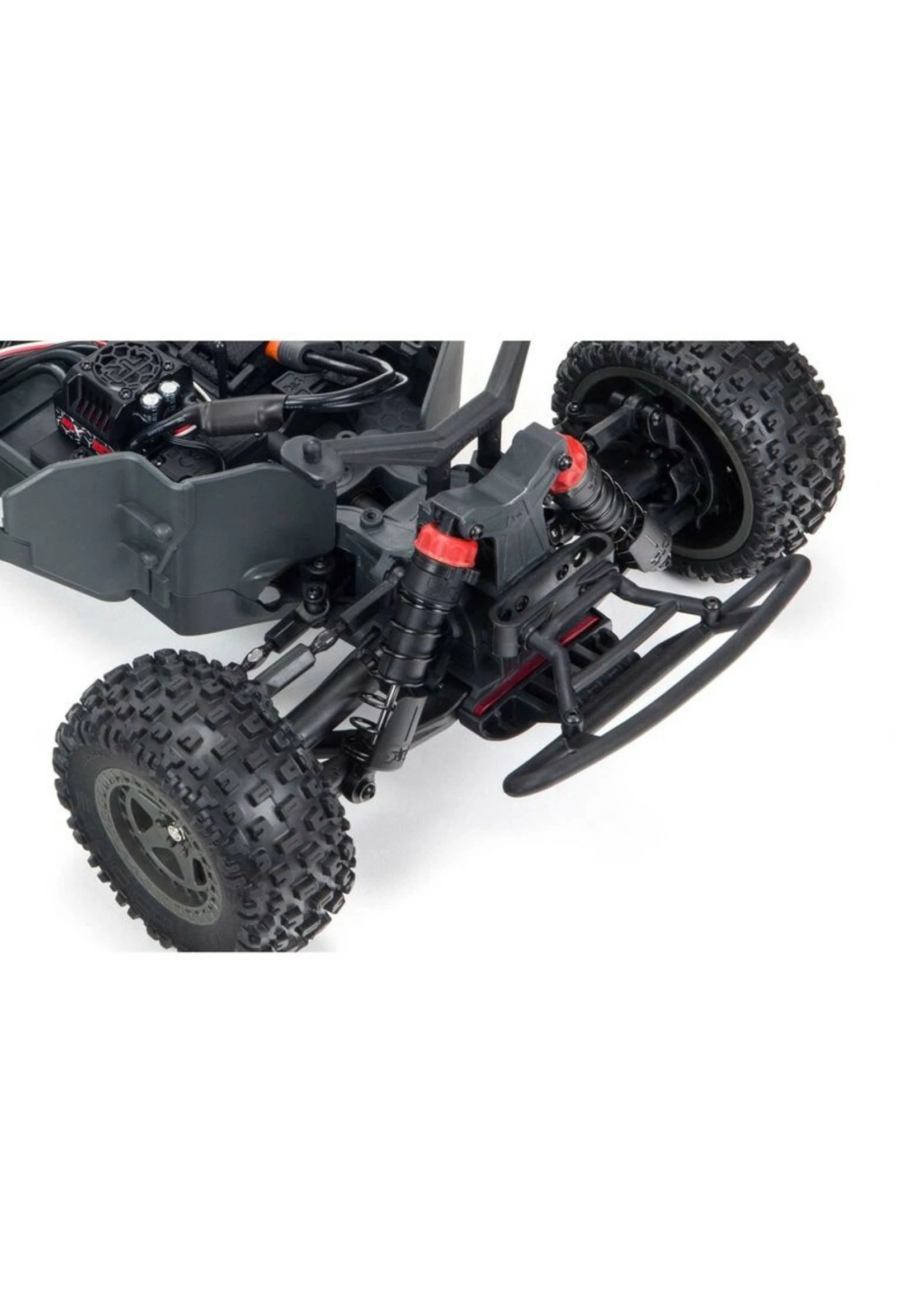

The self-bleeding, oil-filled shocks, now with silicone O-rings, use a tried and tested, coil-over design for simple maintenance and amazing handling. Their innovative rod-end has a molded-in spring perch for extra toughness. Extended height dirt defenders and a close-fitting body limit the amount of dirt and debris that can get into the chassis tub. Front and rear bumpers offer defense against impacts.

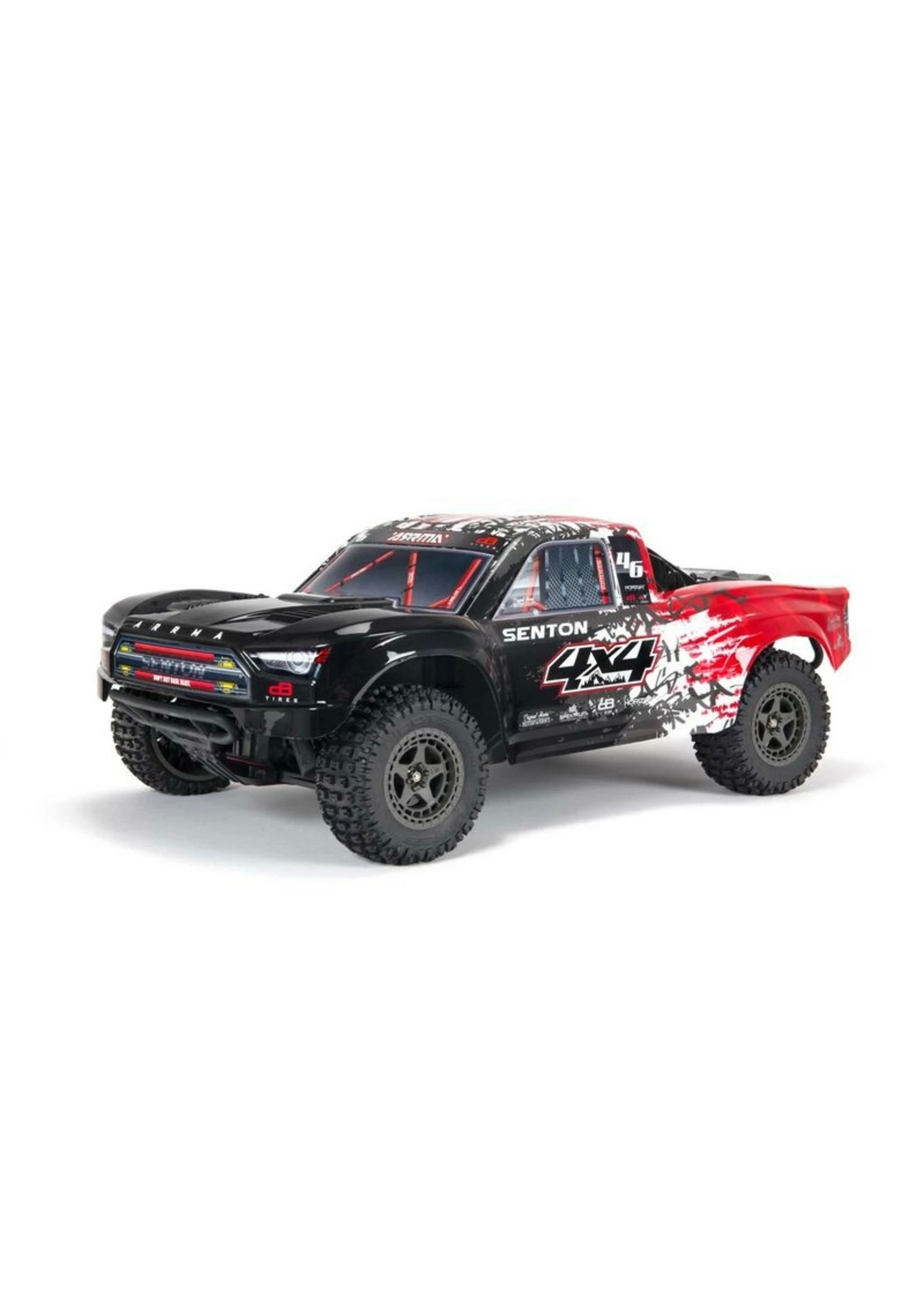

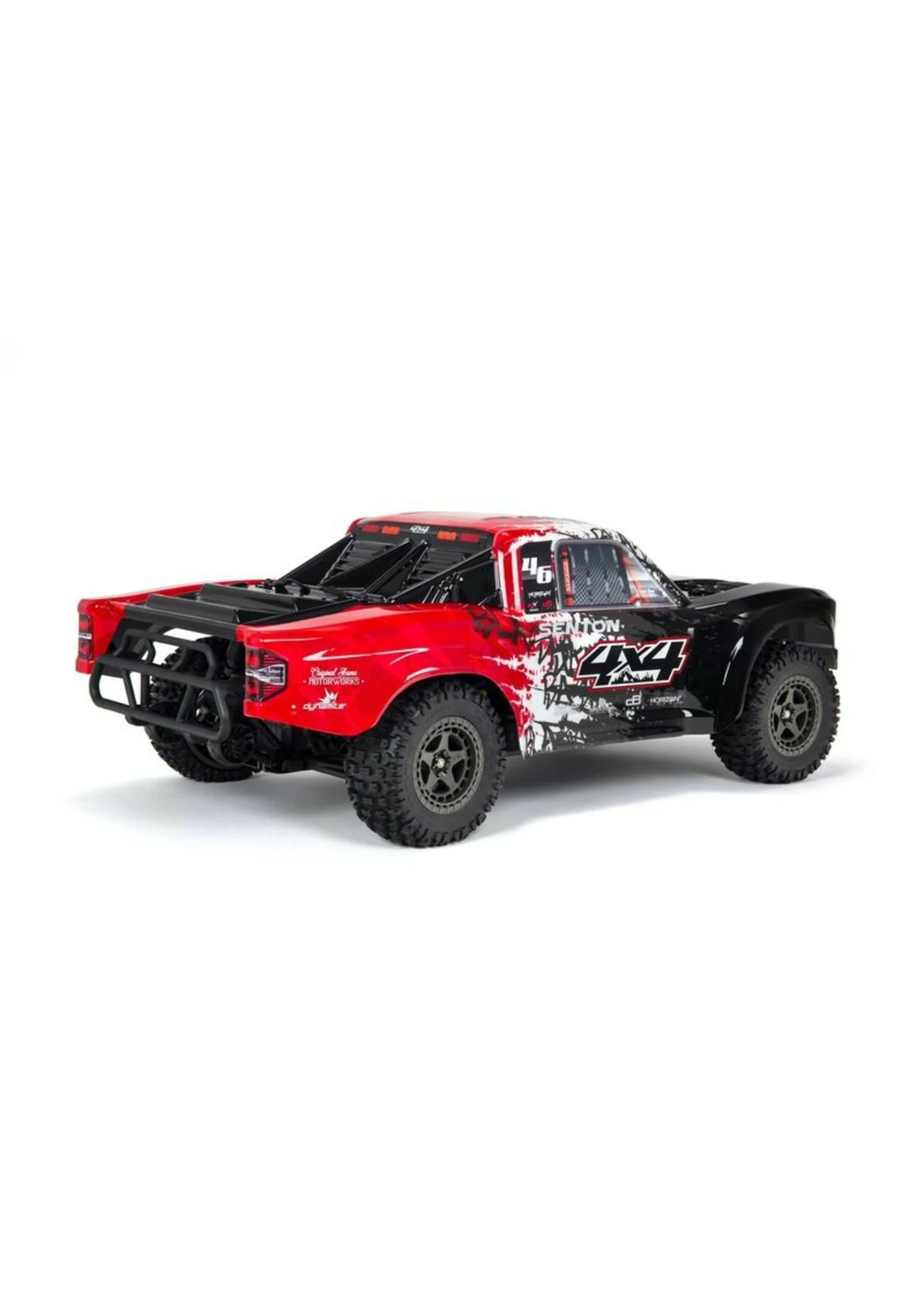

Tough gunmetal colored, multi-spoke wheels with vented dBoots® Fortress™ SC tires give the 1/10 scale SENTON™ 4X4 3S BLX RTR Short Course Truck effective traction for bashing on almost any terrain. The aggressively styled Short Course truck body — available in blue/black or red /black— looks great in action and even better up-close, where the attention to detail on the decal and body aesthetics really shines.

Spektrum™ 3-Channel SLT3™ 2.4GHz radio and SLR300 Waterproof* Receiver

Fast response SLT™ protocol
Foam wheel
Improved grip and trigger feel
Improved wheel and trigger force
2-way thumb switch third channel
50% and 75% Throttle mode (for beginners)
Tactic® SLT™ receiver compatible

Spektrum™ SPMS651 Metal-Geared Digital Servo

101 oz-in (7.27 kg-cm) @ 6V
15% more torque than the previous ADS-7M servo for improved steering feel
Waterproof*
*For details on waterproof standards, refer to the instruction manual.

dBoots® Fortress™ SC tires

Ball Bearings: Full Ball Bearing Drivetrain
Battery: Sold Separately
Body: Painted, decalled and trimmed
Charger: Sold Separately

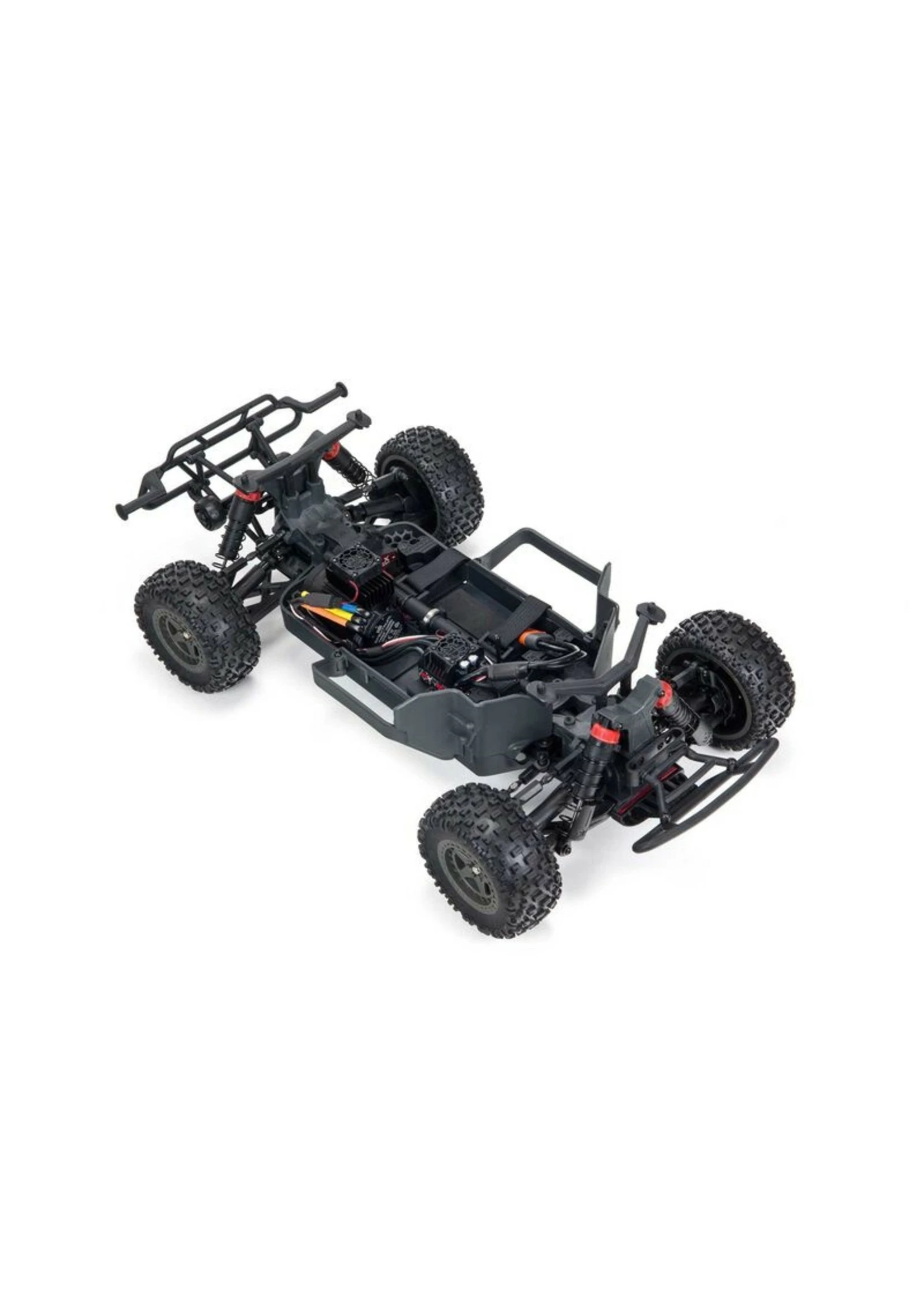

Chassis: Molded Composite
Completion Level: Ready-To-Run
Differential: 2 Gear Diffs
Drivetrain: 4WD
Final Drive Ratio: 8.12
Front Track: 11.73 in (298mm)
Gear Pitch: 0.8MOD
Ground Clearance: 1.26 in (32mm)
Internal Gear Ratio: 2.85
Motor Type: Brushless
Pinion: 20T
Power Type: Electric
Product Height: 8.27″ (210 mm)
Product Length: 21.97″ (558 mm)
Product Weight: 6.05
Product Width: 12.01″ (305 mm)
Radio: Included
Rear Track: 11.73 in (298mm)
Receiver: Included
Scale: 1/10
Servos: Included
Shock Type: Oil-Filled, Coil-Over Springs
Speed: 50+
Spur Gear: 57T
Suspension: Independent
Vehicle Type: Short Course Truck
Water-Resistant: Yes
Wheelbase: 12.87 in (327mm)
